SPECIFICATIONS

Brand Name: PGST

Certification: CE,RoHS

Detection Angle: 110°

Detection Range: 8-12M,8m~12m(25℃℃)

Dimensions: 105*40*26mm

Emission Distance: 280m(in open air)

Emission frequency: 315Mhz1433Mhz(ASK)868Mhz(FSK)(optional)

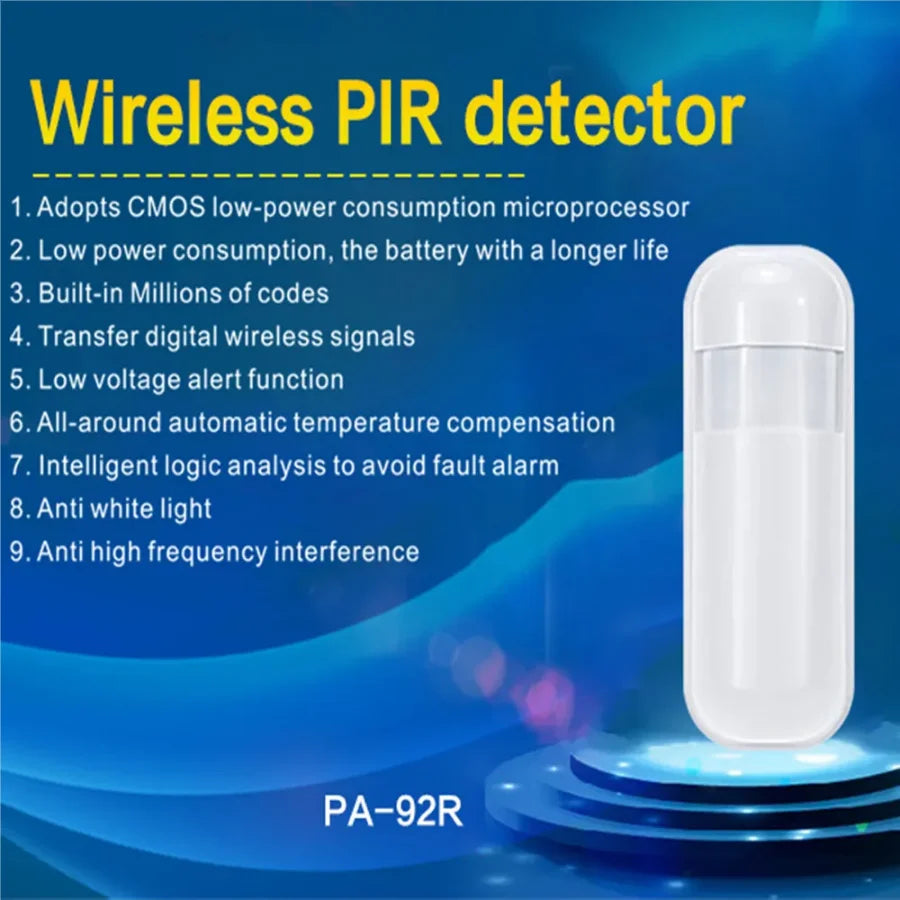

Feature 1: Adopts CMoS low-power consumption microprocessor

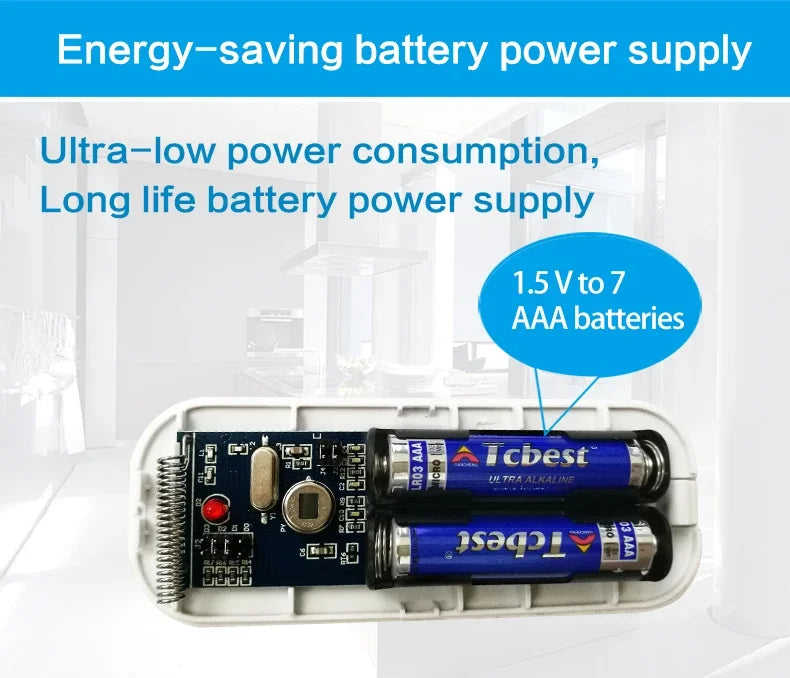

Feature 2: Low power consumption, the battery with a longer life

Feature 3: Built-in Millions of codes

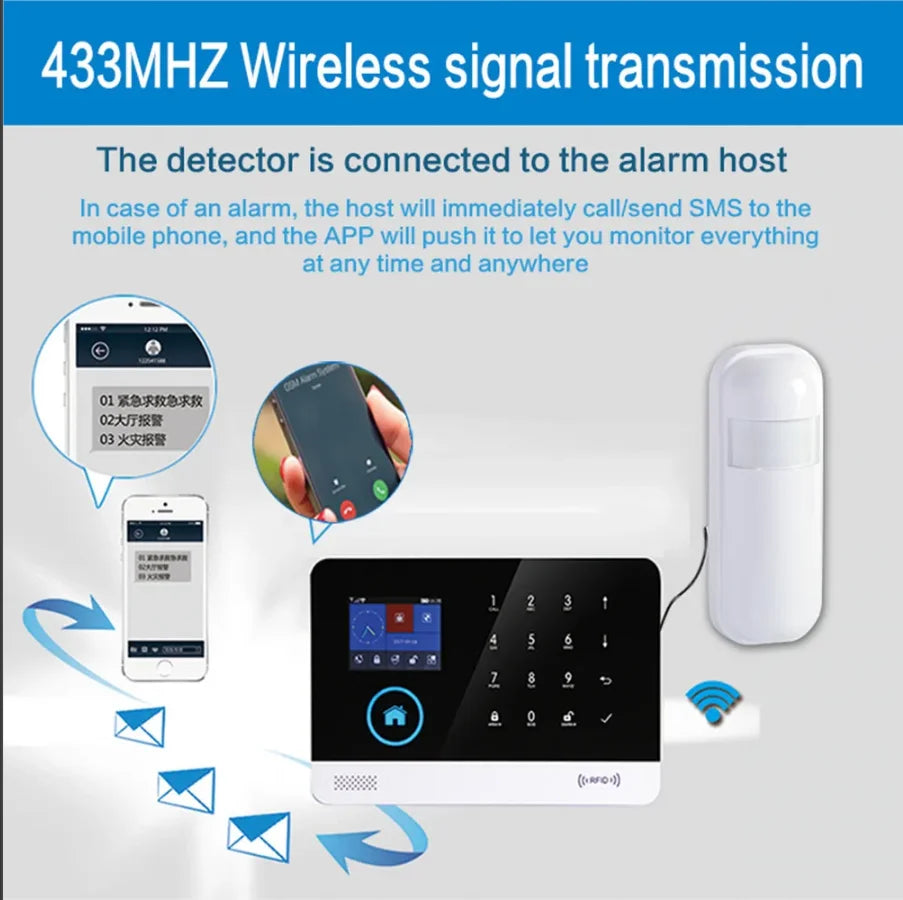

Feature 4: Transfer digital wireless signals

Frequency: 433MHz

Hign-concerned Chemical: None

IC: 1527

Installation Height: 1.8-2.2M,1.8-2.2m(Focus on the center of the detector)

Installation Way: Wall hanging

Model Number: PA-92R

Origin: Mainland China

Resistance: 330K Ω

Smart home platform: other

Static current: ≤15uA

Transmitting power: ≤10dB

Working current: ≤25mA

Working temperature: -10°C~55℃℃

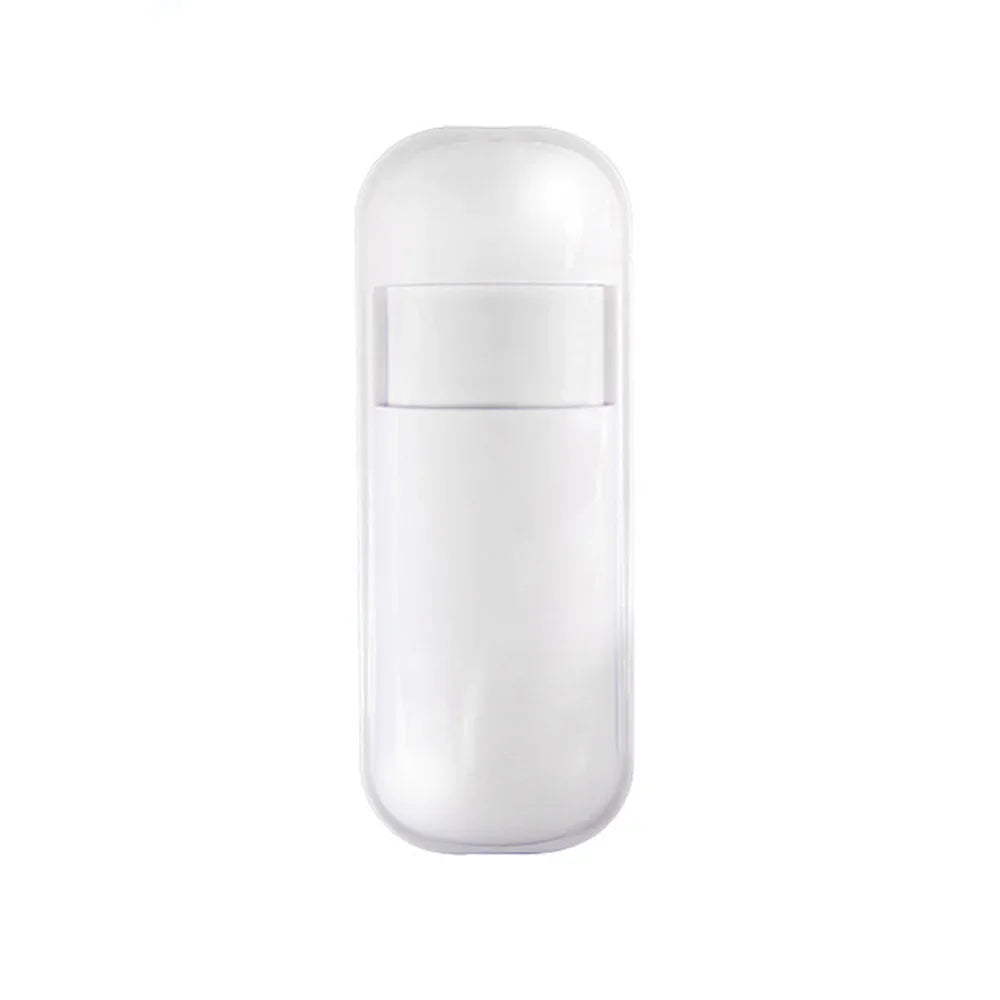

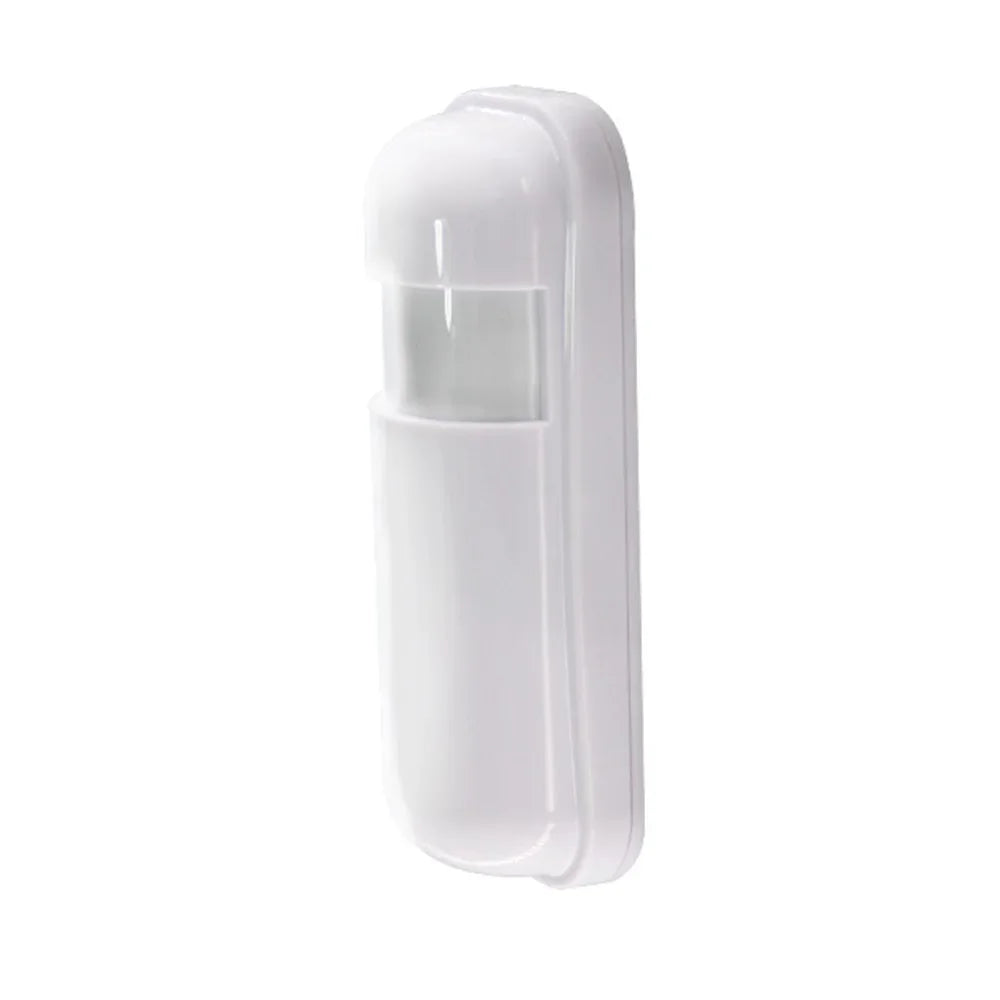

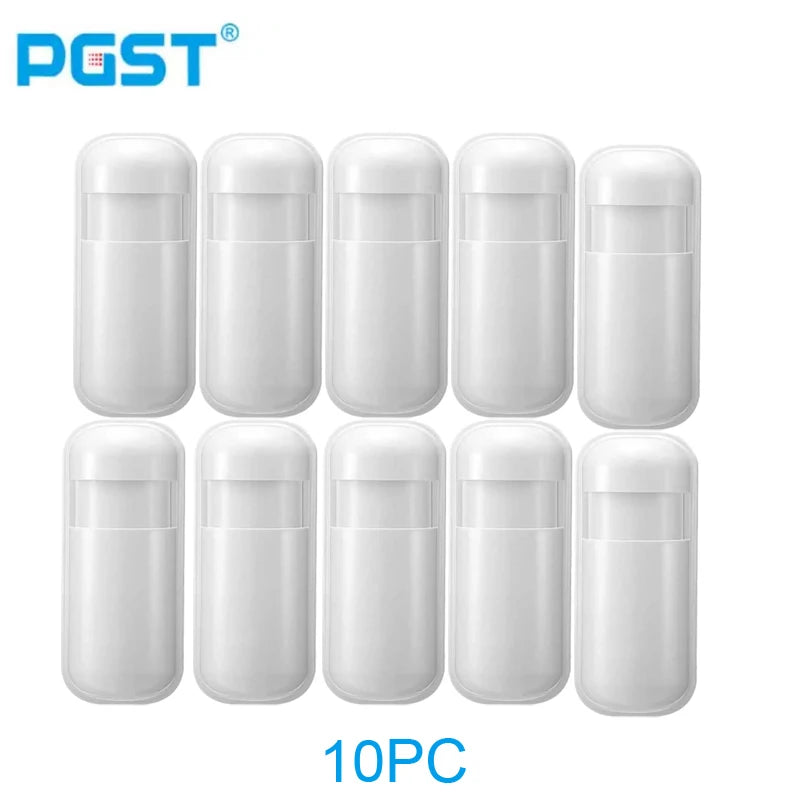

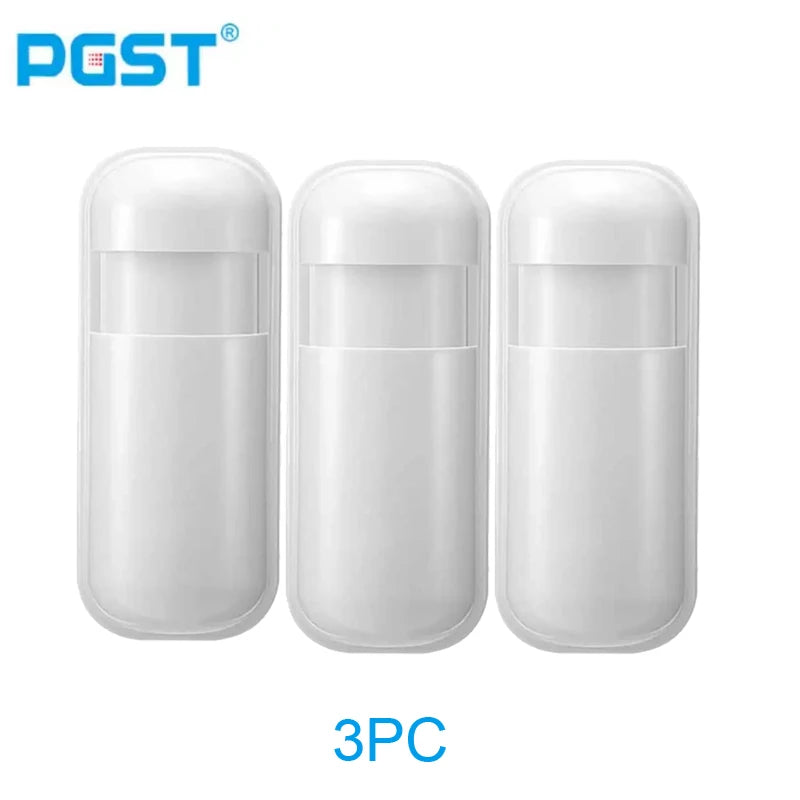

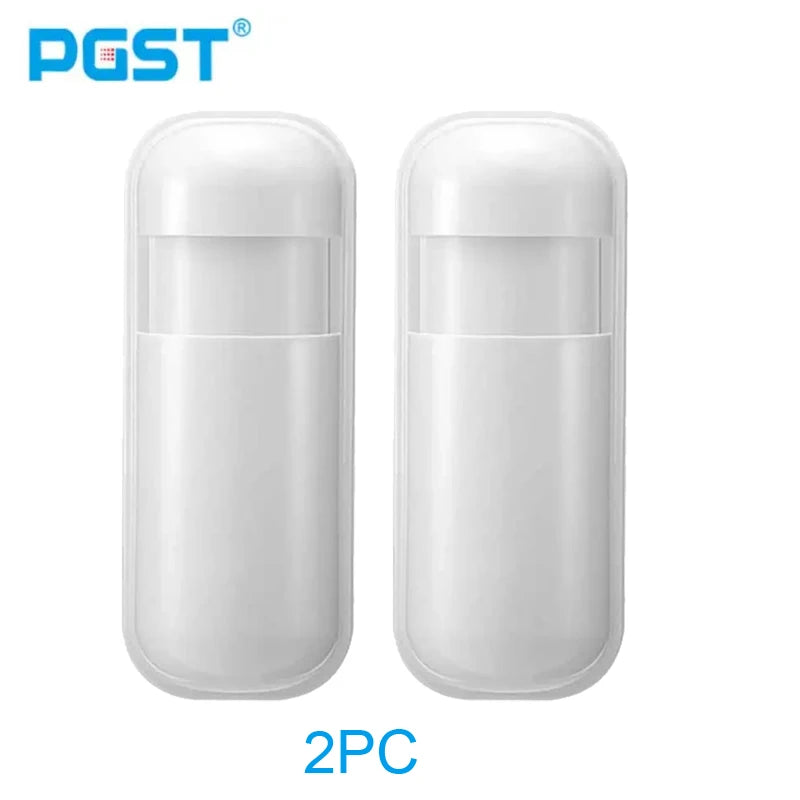

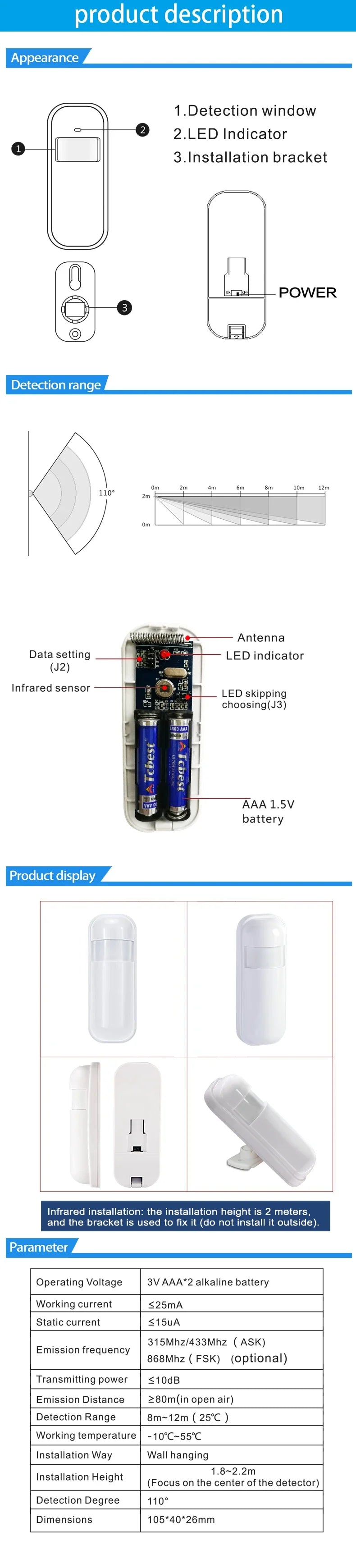

PIR Motion Sensor Detector 433MHz eV1527 for Home Alarm System Wireless Infrared Motion Detector

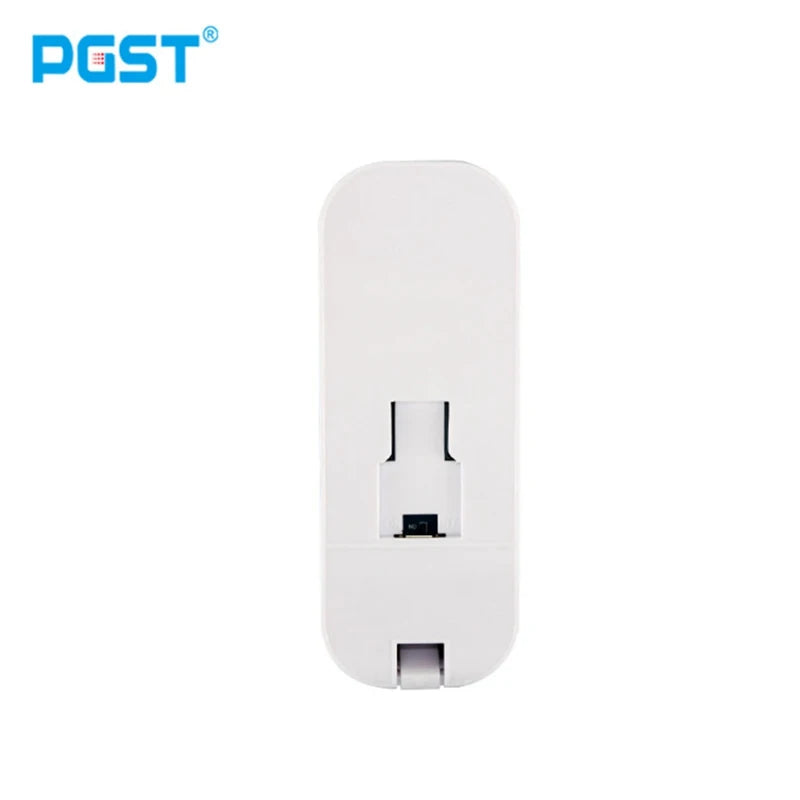

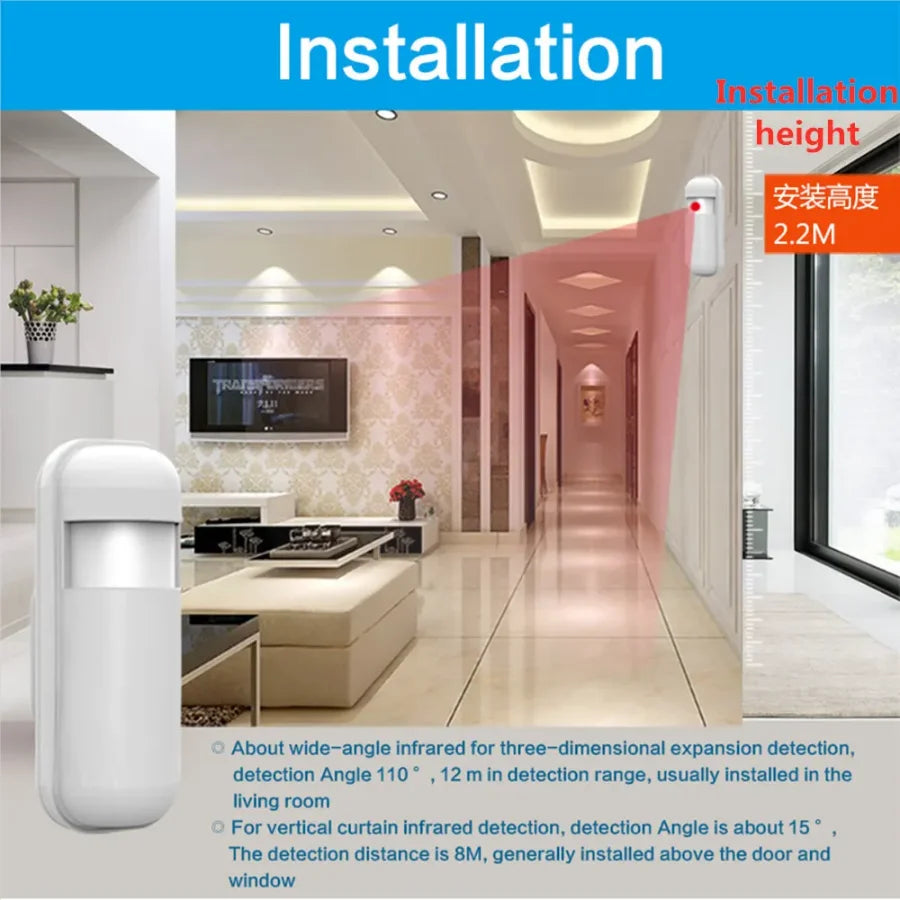

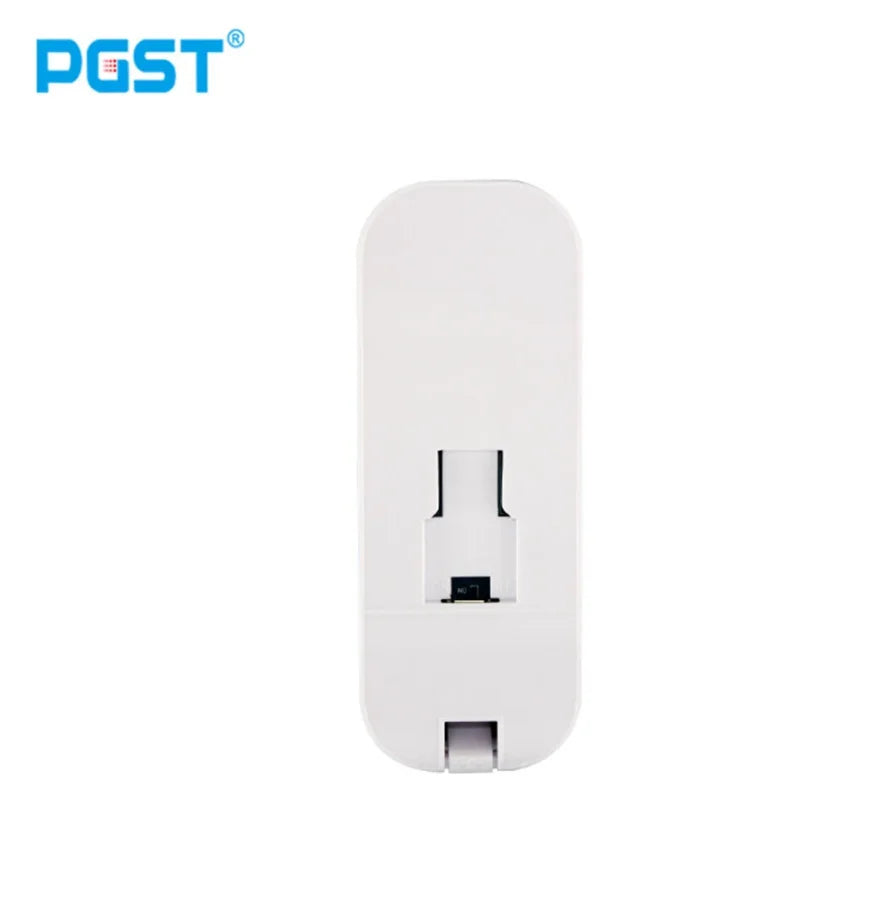

Installation height is about 2.2 meters above ground and the optimized detection angle for most motion sensor is 90 degree. The sensor should face the detected area with this consideration for best coverage. It is advised to install with the face of motion sensor perpendicular to the most probable moving detection of people for the highest effective detection.Before use, make sure the power switch of PIR motion sensors is at the ON positio
