SPECIFICATIONS

Alarm output: 100mA/24V

Alarm time: 3s

Anti RFI/EMI: 0.1-500MHz/3V/m

Anti-white light: >10000LUx

Brand Name: Emooluxr

Certification: CE

Current: 30mA

Detect speed: 0.2m/s to 3.5m/s

Install high: 1.5m.-2.4m

Model Number: OUT-400C

Mw frequency: 10.525GHz

Origin: Mainland China

Power supply: 9-16V DC

Product Name: Wire PIR Motion Sensor

Smart home platform: None

Outdoor Wired PIR Microwave Motion Sensor Pet Immune 25KG 100° 12-Meter Detecting Range For Burglar Alarm System

Product Introduction:

This movement sensor is a special three-tech (PIR+PIR+MW) complex detector for outdoor intrusion. Signals of 3 sensors are with super steady and depend-ability by its advanced multi-grades digital signal processing technology. And they can offer 3 different detection modes on 2 sensitive grades in order to choose the best the detection way for spot environment and gets the best rate between the best detection ability and the minimum false alarm rate. With normal“AND" and“OR " modes, The detector is also with“EI" mode to avoid the damage of dopes spraying on the lens. Its unique water-proof design is totally fit for outdoor installation. At the same time, detector is also with other functions such as anti-masking automatic setting and alarm type memory etc.

Features and Parameter:

-Two PIR and MW detection tech

-Automatic setting of anti-masking

-Microwave synchronization

-Detection mode: - EI-OR - AND

-Selectable detection sensitivity

-Alarm type memory

-Anti white light

-Anti-pet ≥25kg

-Alternative Led OFF

-Micro-strip MW with pulse transmission

-18 beams Fresnel lens with down-view window on its 4 planes

-Vertical adjustment

-Air-proof optical parts

-Wall inlay

-Total view:90°, Monitoring scale: 15m

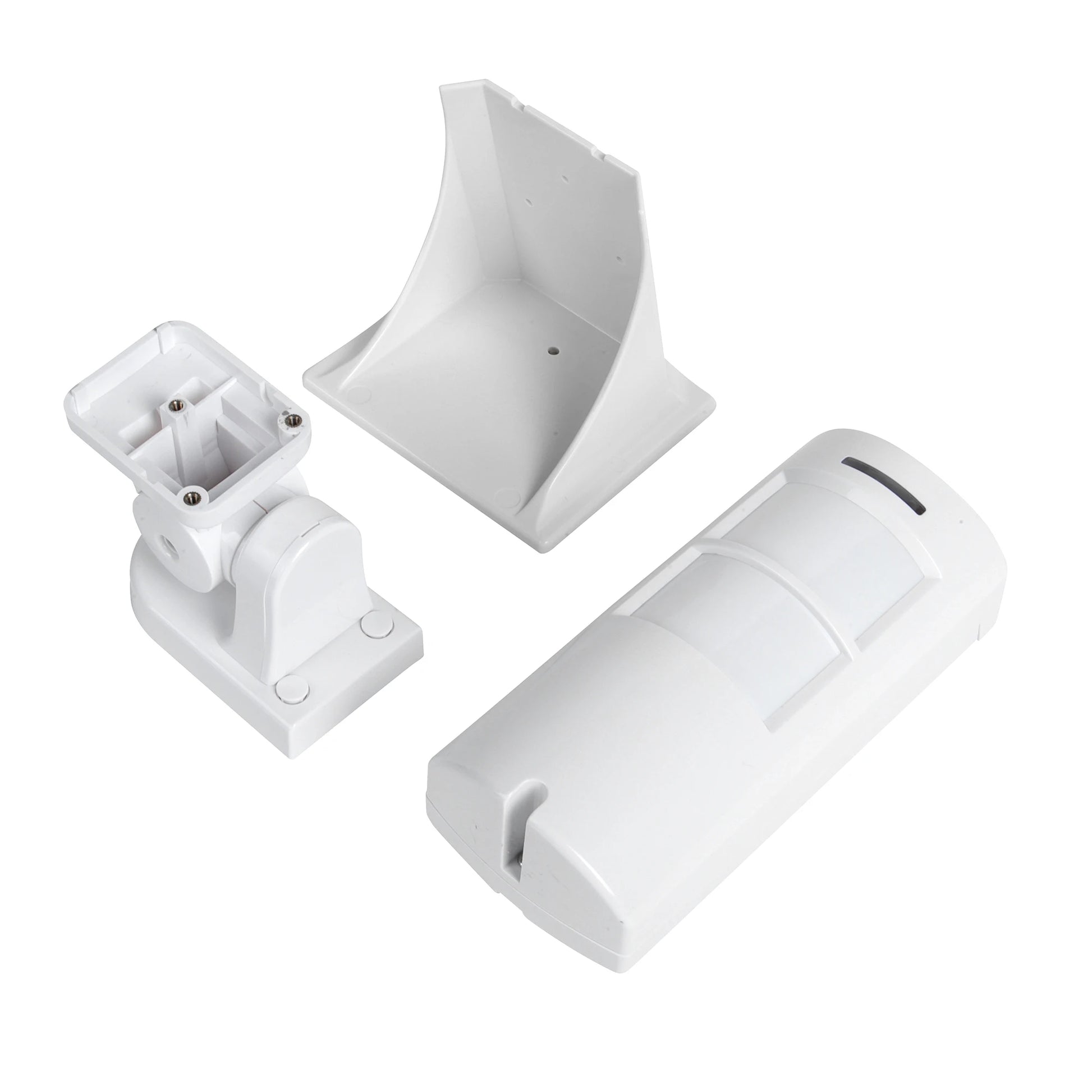

-Corner and wall installation.Universal connector- Universal connector for option,

-90 ° horizontal adjustment  30°vertical adjustment

Specifications:

Power supply :   9-16VDC

Current:     30mA

Install high:  1.5m.-2.4m

MW frequency : 10.525GHz

Alarm time:  3s

Anti RFI/EMI:  0.1-500MHz/3V/m

Anti-white light:  >10000LUx

Alarm output:  100mA/24V

Mask output: 100mA/24V

Temperature: -25℃/+55℃

Humidity(RH): 95%

Sensitivity:  H/L Select

Detect speed:   0.2m/s to 3.5m/s

Dimensions (H*W*D):  160mm*65mm*50.5mm

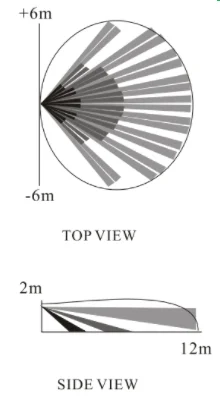

Coverage:  12m×12m 100°

package Content:

1pc Wired PIR & Microwave Motion Sensor pet friendly detector ( included bracket and screws).

Kindly Reminder:

This wired motion sensor can't work independently, it can work with all alarm panels which support wired zones.

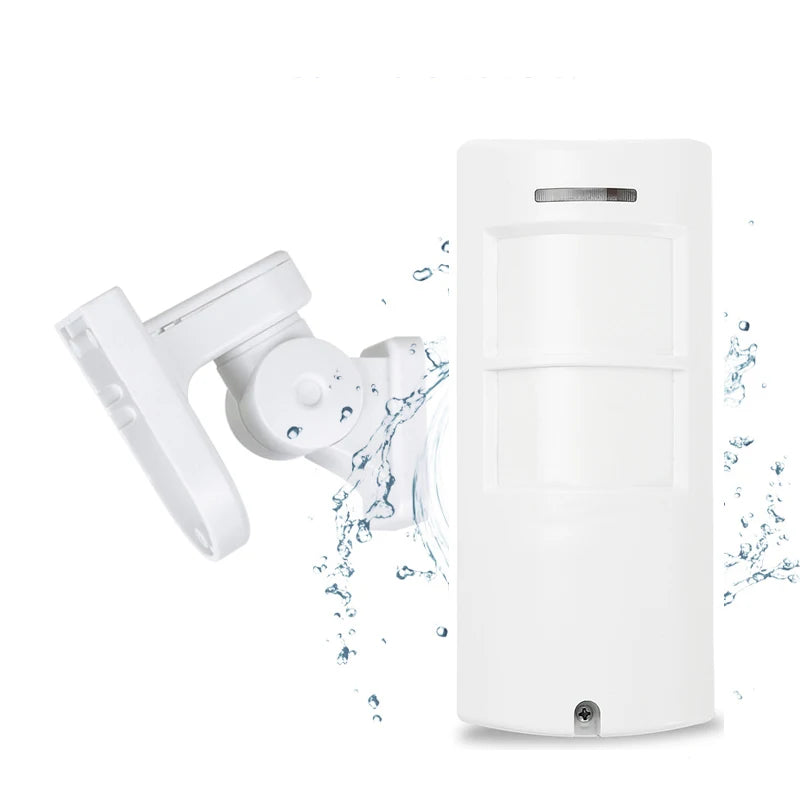

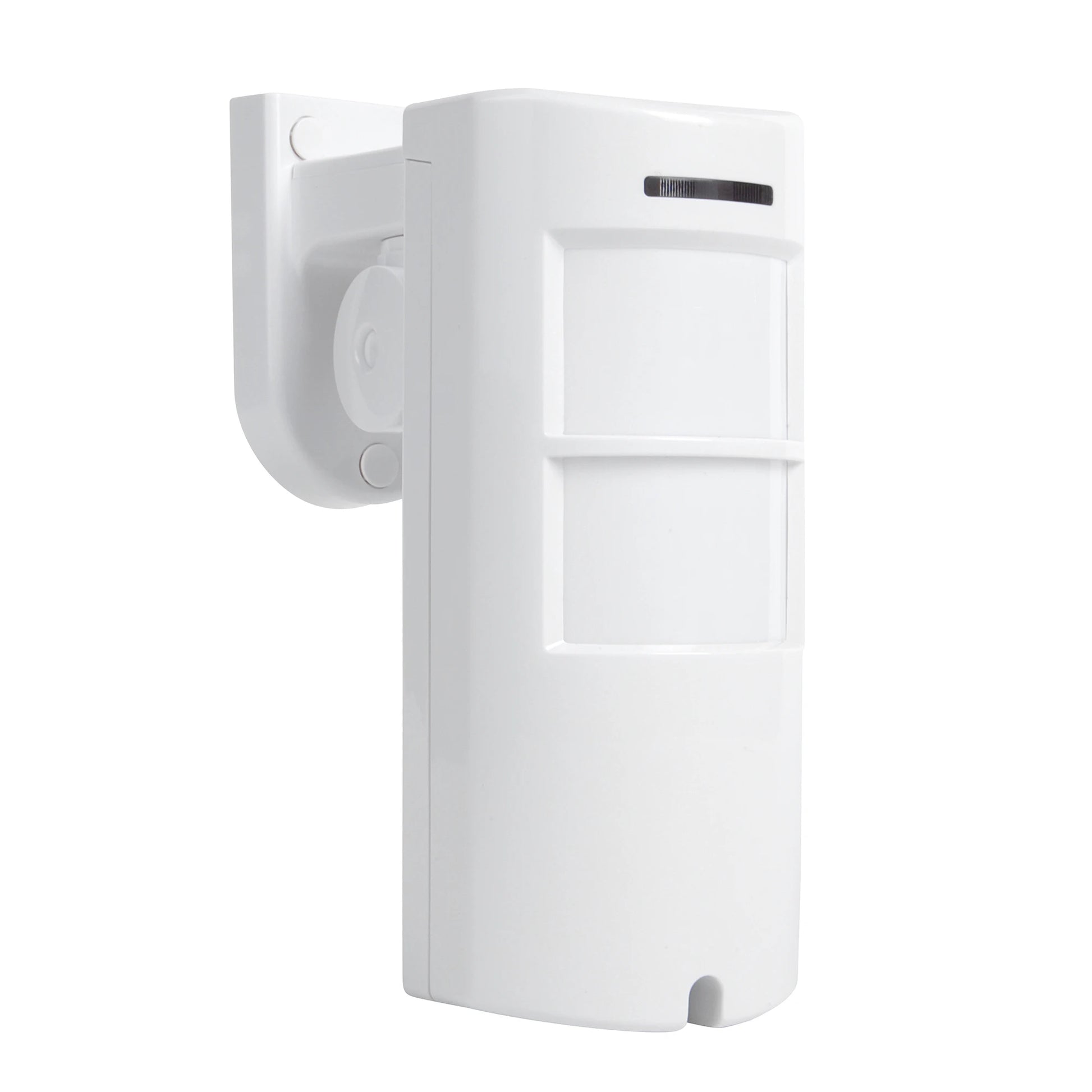

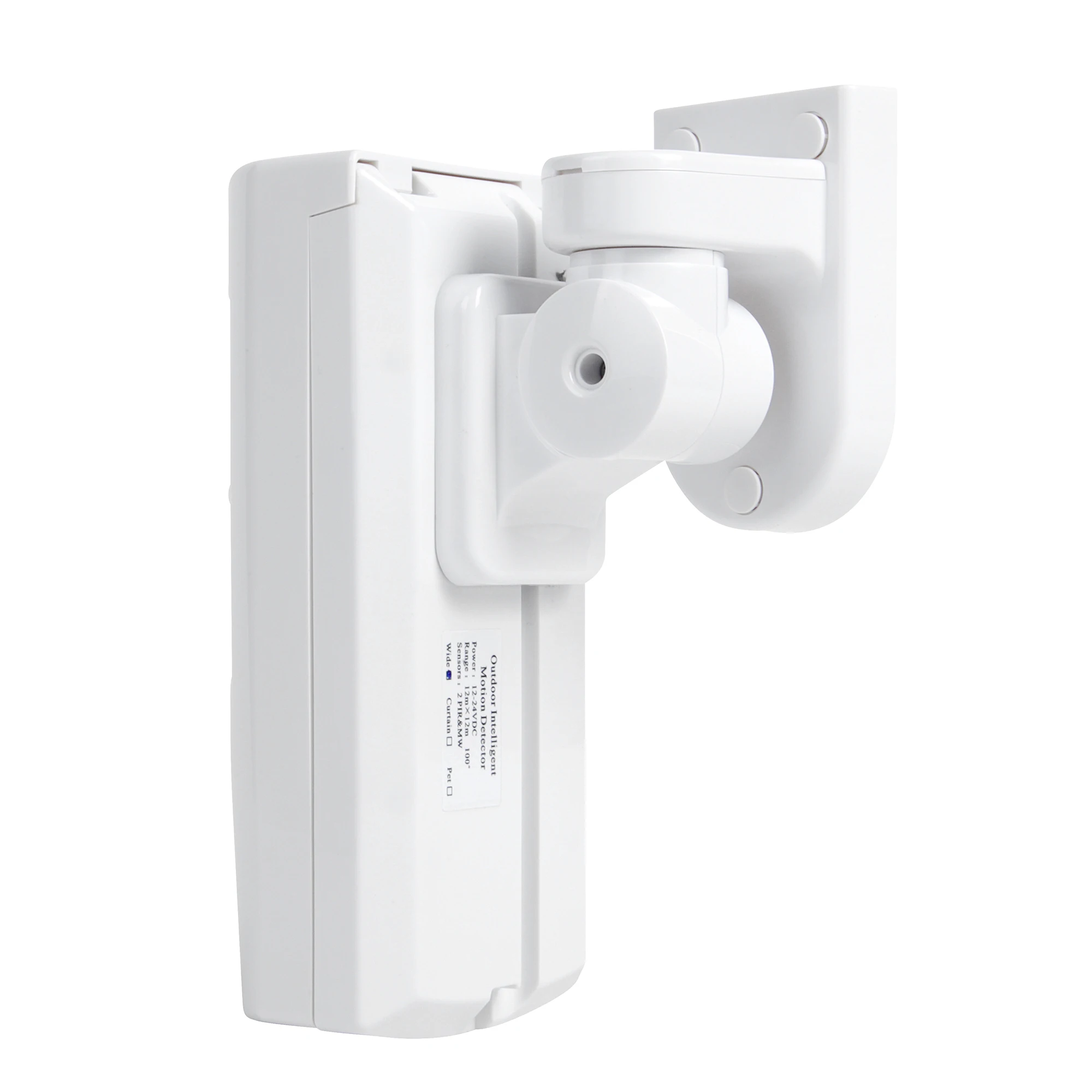

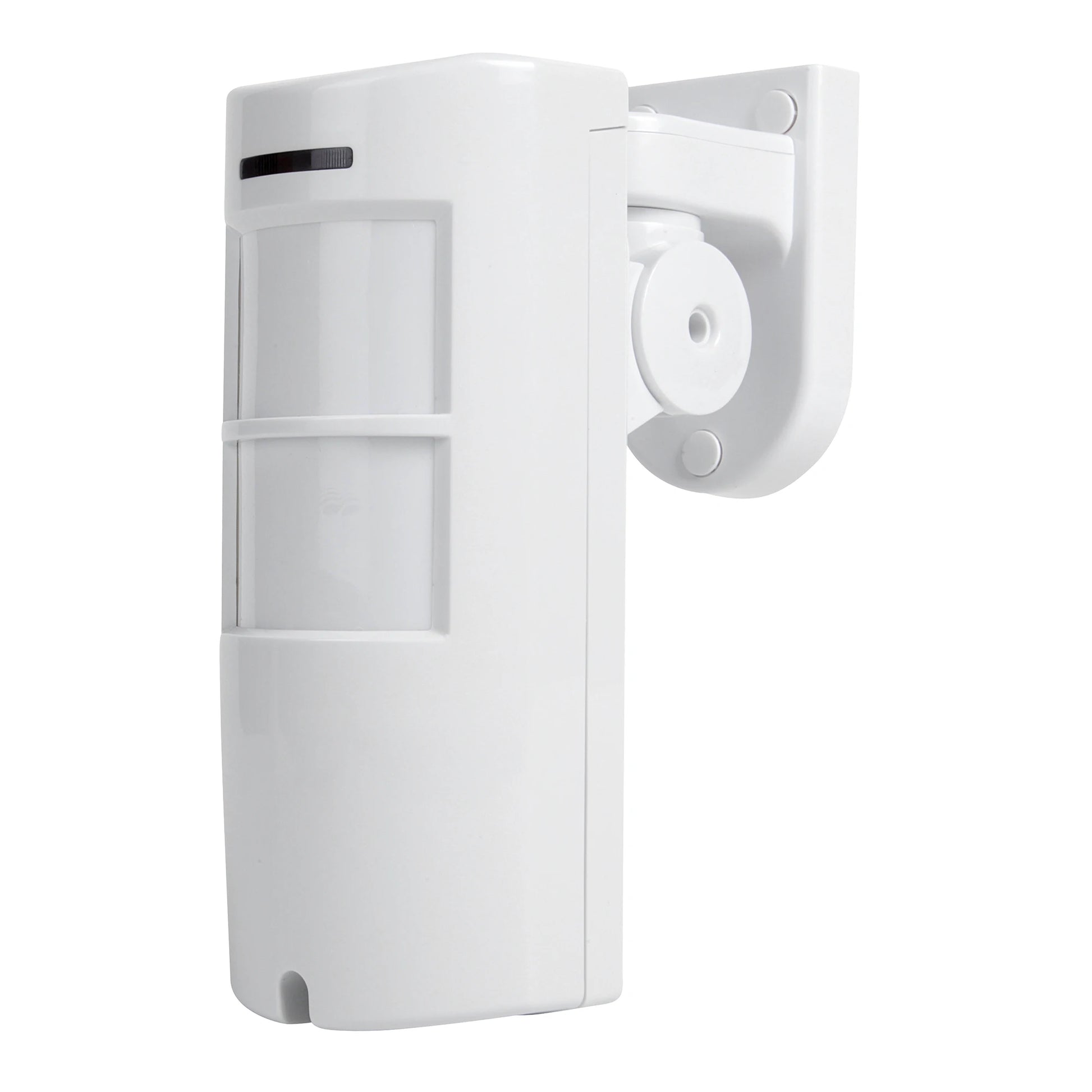

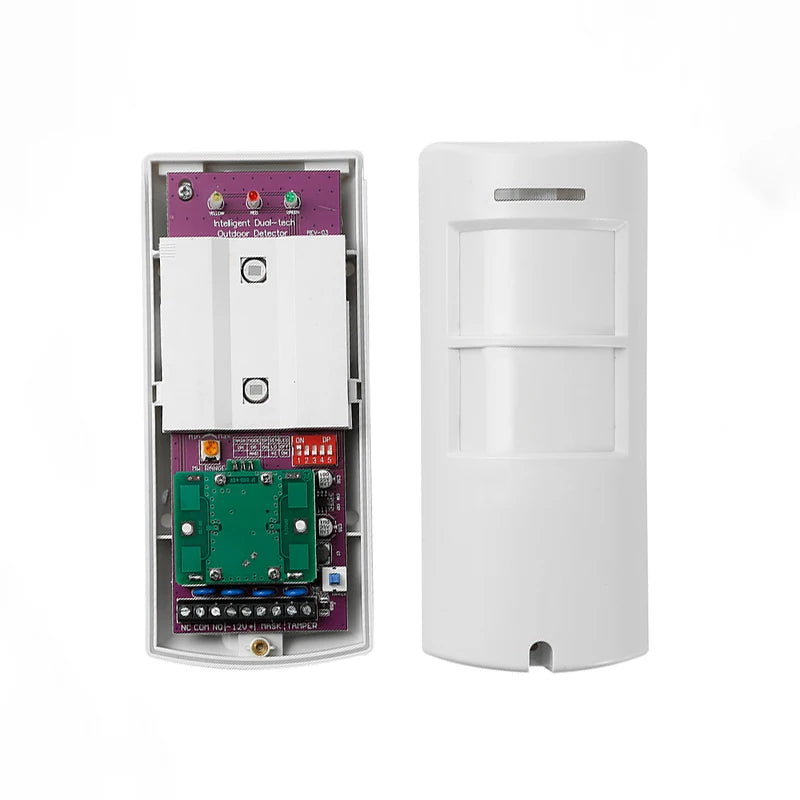

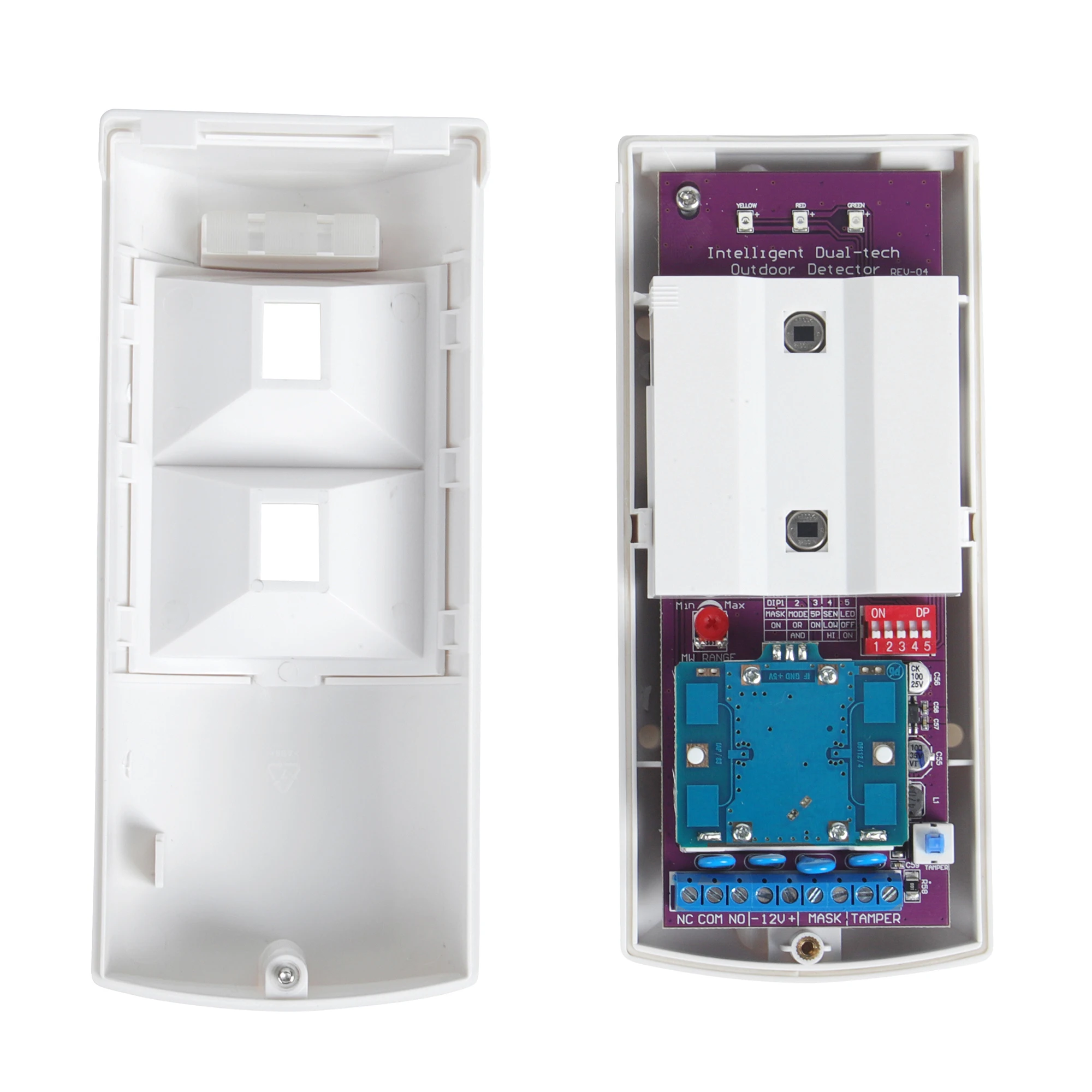

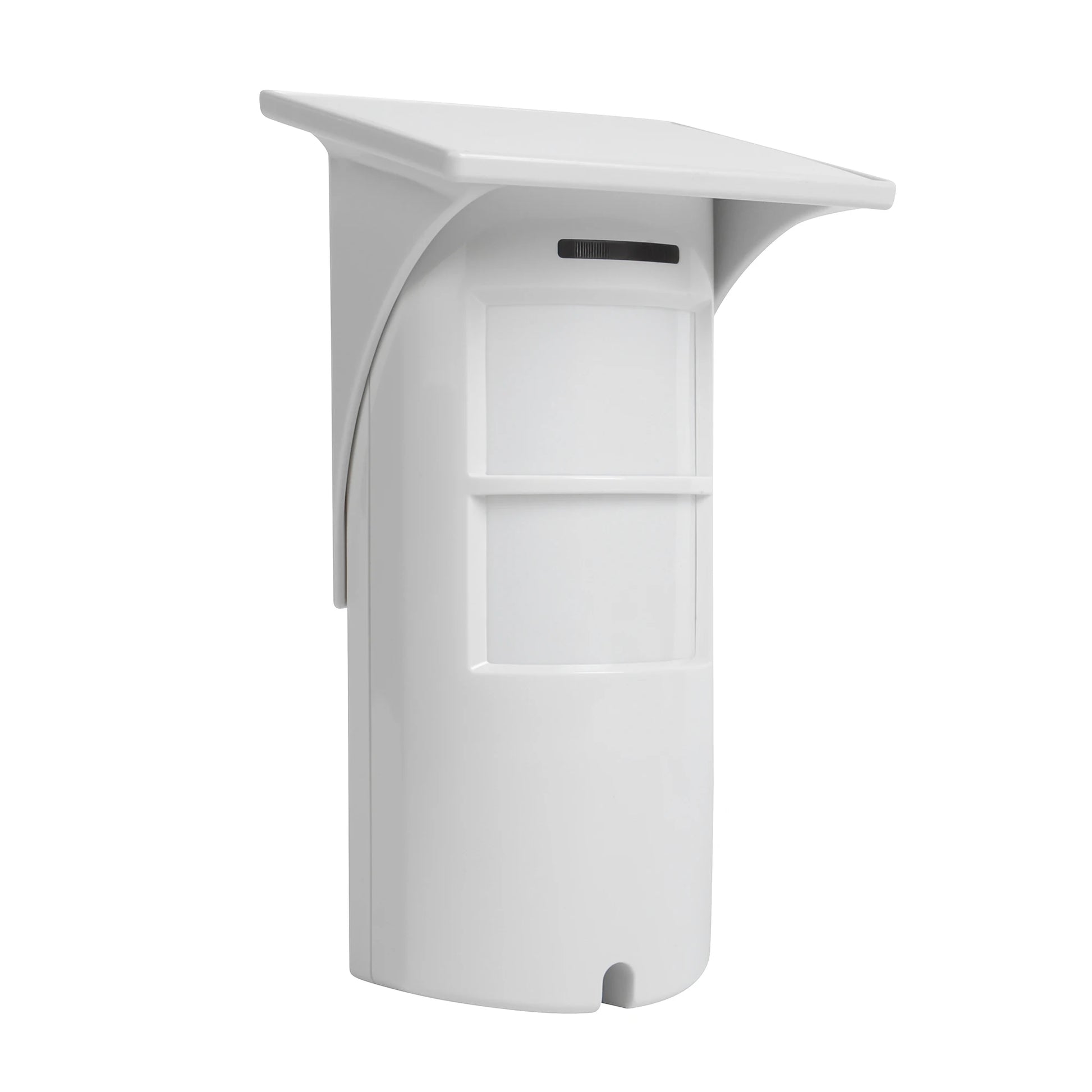

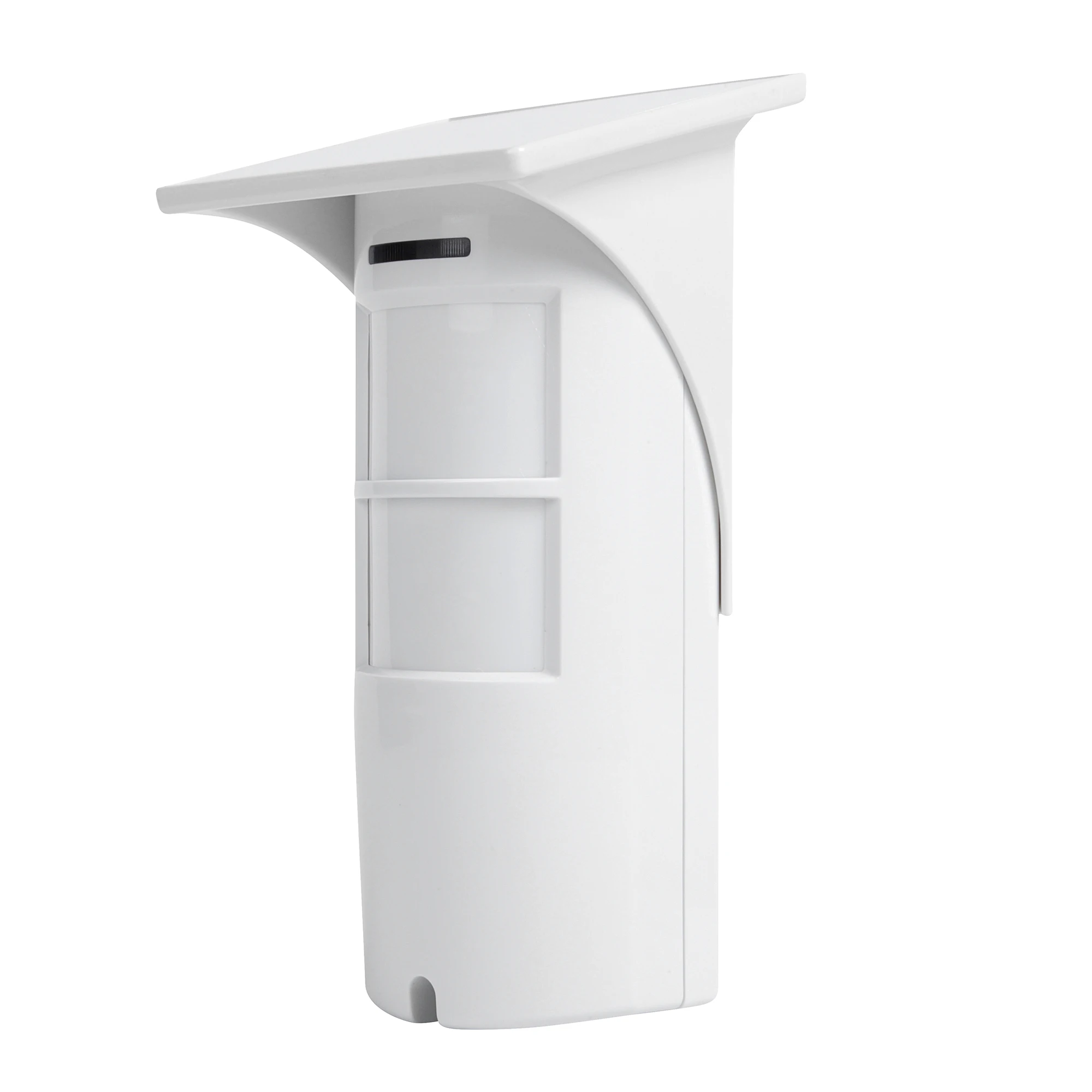

Product Show:
