SPECIFICATIONS

Alarm output: NC/NO 2A/24VDC

Alarm time: 3sAnti RFI: 0.1-1000MHz/30V/m

Anti-white light: >10000LUX

Brand Name: Emooluxr

Certification: CE

Current: 30mA

Hign-concerned Chemical: None

Install high: 1.5m~2.4m

MW frequency: 10.525GHz

MW power (EIRP): 13dBm

Mask output: 100mA/24V

Model Number: MC-400T

Origin: Mainland China

PIR sensor: 2*Dual elements

Power supply: DC 12-24V

Smart home platform: None

Outdoor Waterproof Microwave PIR Motion Sensor Wire Pet Immune Infrared Detector For Home Alarm System Protection

Kindly Reminder:

This wired sensor can't work alone, it can work with all alarm host which support wired zones.

Product Introduction:

This outdoor sensor is a special three-tech (PIR+PIR+MW) complex detector for outdoor intrusion. Signals of 3 sensors are with super stability and depend-ability by its advanced multi-grades digital signal processing technology. And they can offer 3 different detection modes on 2 sensitive grades in order to choose the best the detection way for spot environment and gets the best rate between the best detection ability and the minimum false alarm rate. With normal “AND”and “OR” modes, also with “EI” mode to avoid the damage of dopes spraying on the lens. Its unique water-proof design is totally fit for outdoor installation. At the same time, also with other functions such as anti masking automatic setting and alarm type memory etc.

Parameter:

Power supply: 12-24VDC

Current:  30mA

Install high: 1.5m.-2.4m

MW frequency: 10.525GHz

MW power(EIRP): 13dBm

PIR sensor:  2×Dual elements

Alarm time: 3s

Anti RFI: 0.1-1000MHz/30V/m

Anti-white light:  >10000LUX

Anti EMI: 50000V

Anti-pet weight:  25Kg

Alarm output: NC/NO @2A/24VDC

Mask output: 100mA/24V

Temperature: -25℃/+55℃

Storage temp: -40℃/+65℃

Humidity(RH): 95%

Sensitivity: H/L Select

Detect speed: 0.2m/s to 3.5m/s

shell material: ABS Resin

Dimensions (HXWXD): 163mm×67mm×54mm

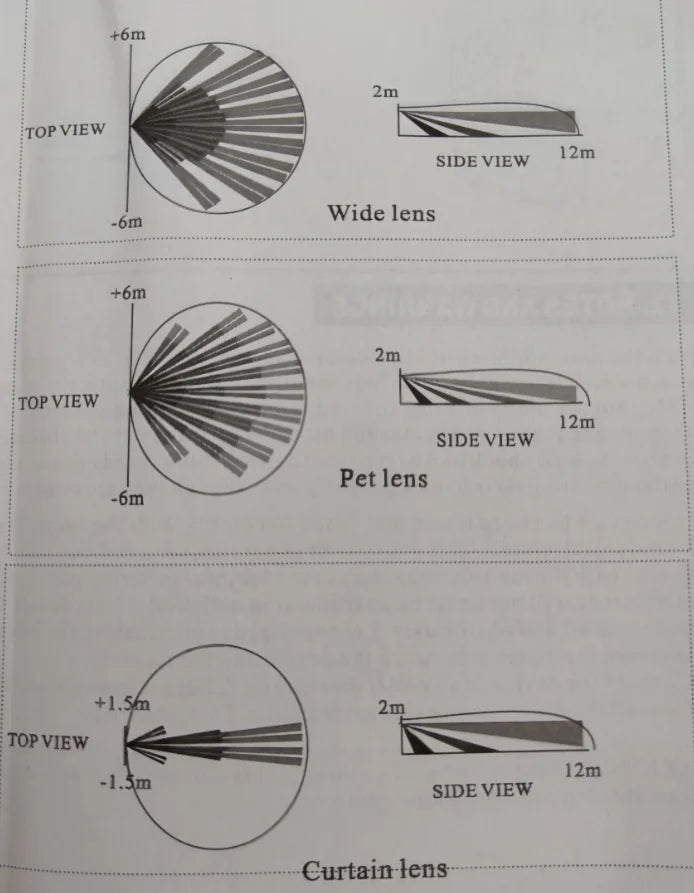

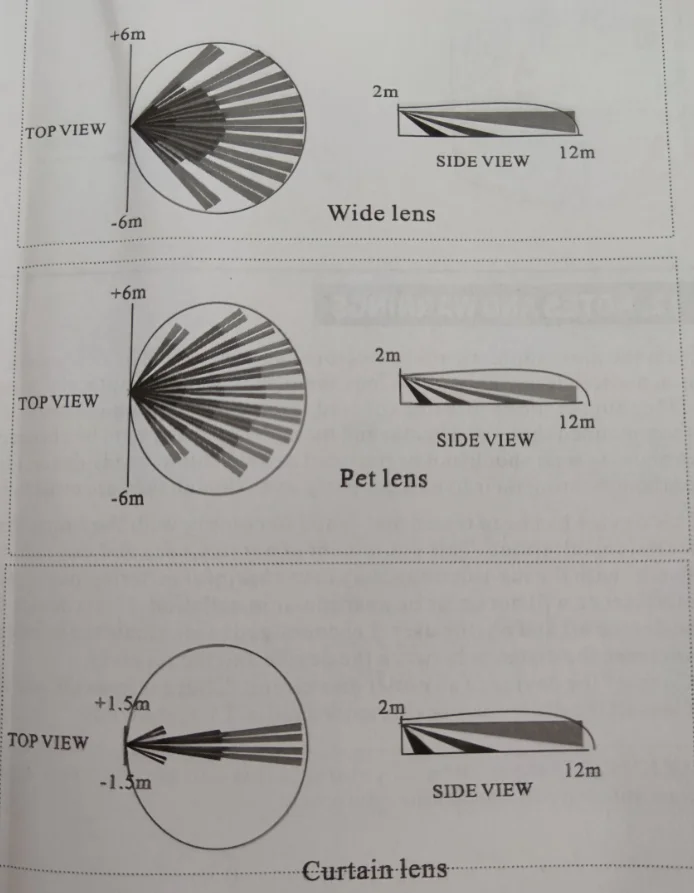

Coverage:  12m×12m 100°(wide lens)

                  12m×3m 12°(curtain lens)

                  12m×12m 100°(pet lens)

Features:

-Two PIR and MW detection tech

-Automatic setting of anti-masking

-Microwave synchronization

-Detection mode: MW 5P-OR - AND

-Selectable detection sensitivity

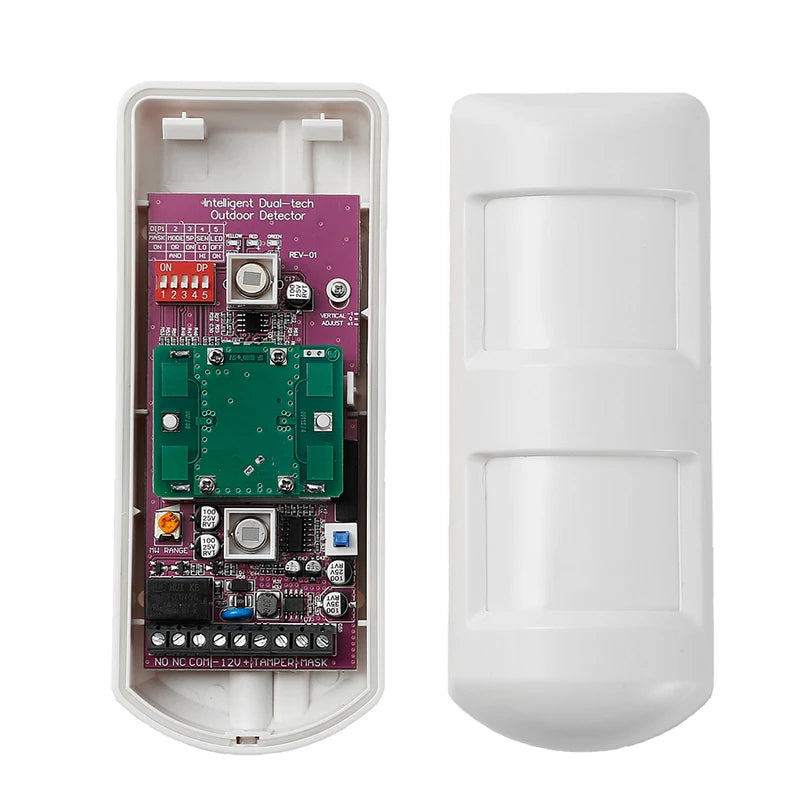

-Alarm output NO/NC Select

-Anti white light

-Anti-pet ≥25kg

-Alternative Led OFF

-Micro-strip MW with pulse transmission

-18 beams Fresnel lens with down-view window on its 4 planes

-Vertical adjustment

-Air-proof optical parts

-Wall inlay

-Total view:100°， Monitoring scale: 15m

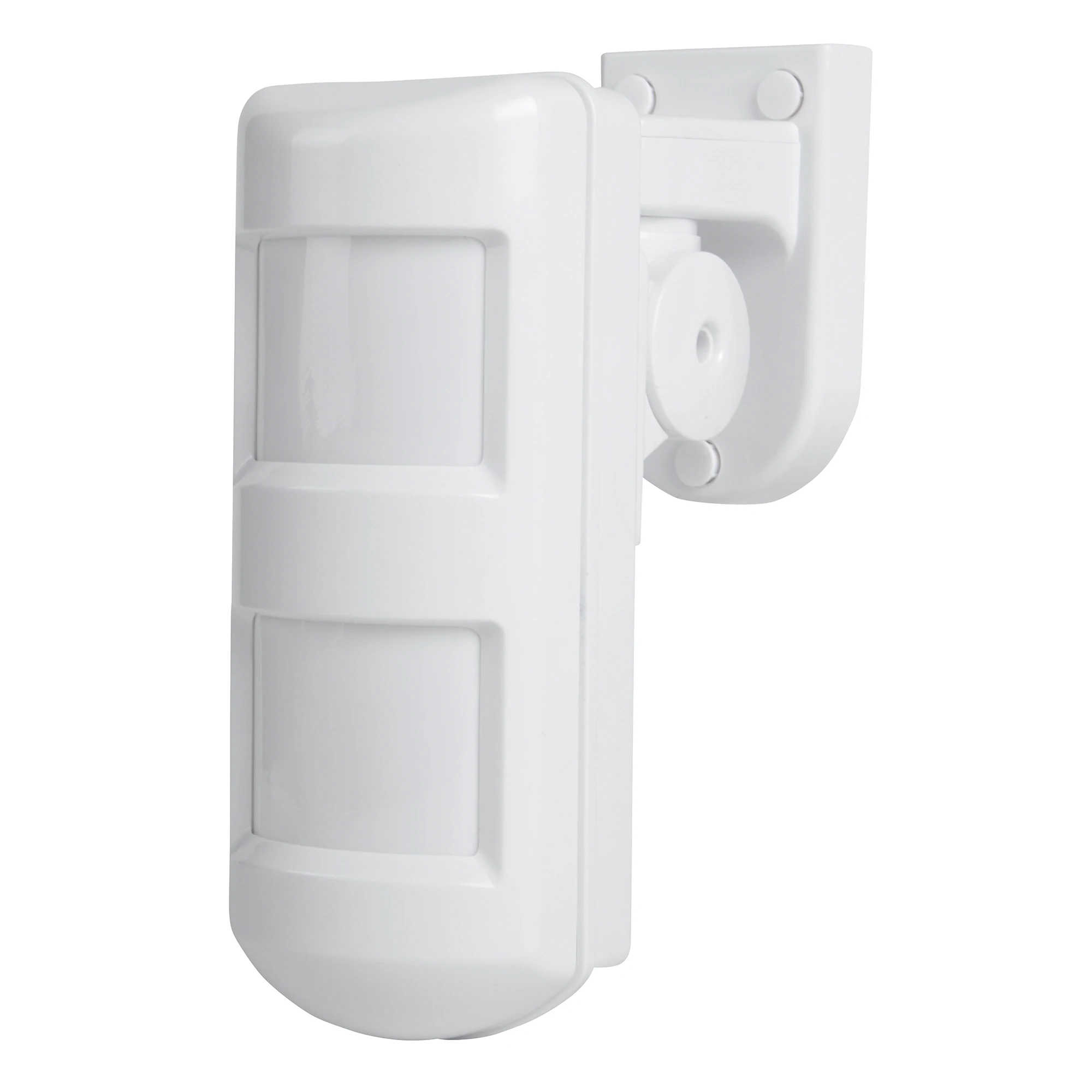

-Corner and wall installation. Universal connector

- Universal connector for option,

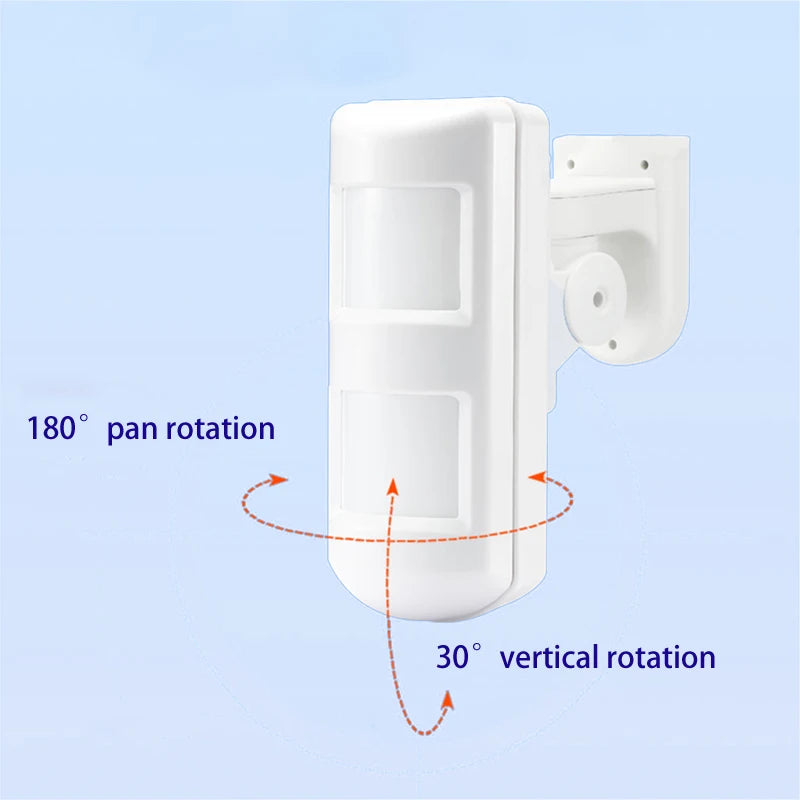

-90°horizontal adjustment    30°vertical adjustment

Package content:

1pc wired PIR + MW motion sensors ( including bracket and screws).

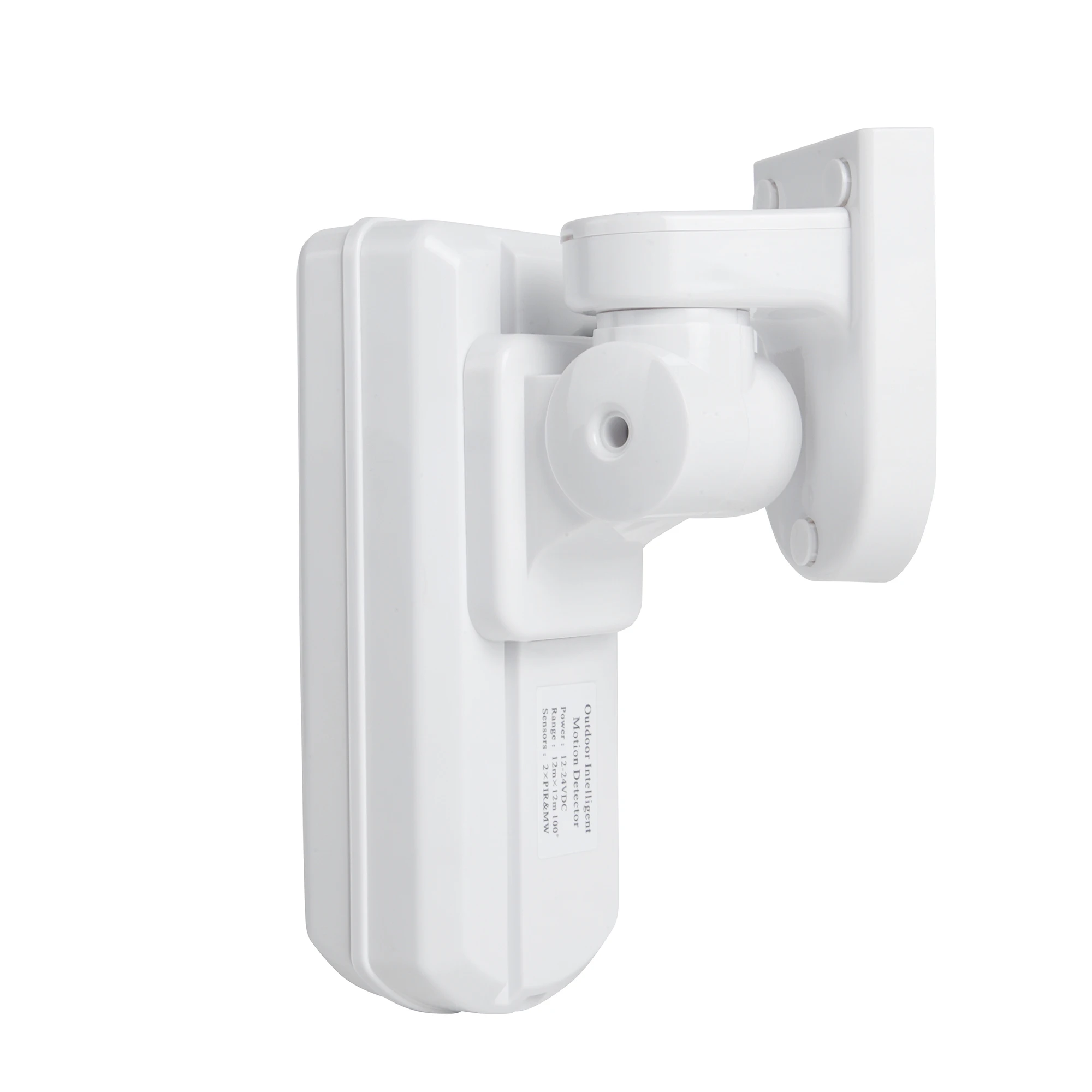

Product Show:
