SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE

Detection Distance: 12 Meters

Model Number: OTD-40T

Origin: Mainland China

Pet Friendly: up to 25kgs

Smart home platform: None

Waterproof: IP65

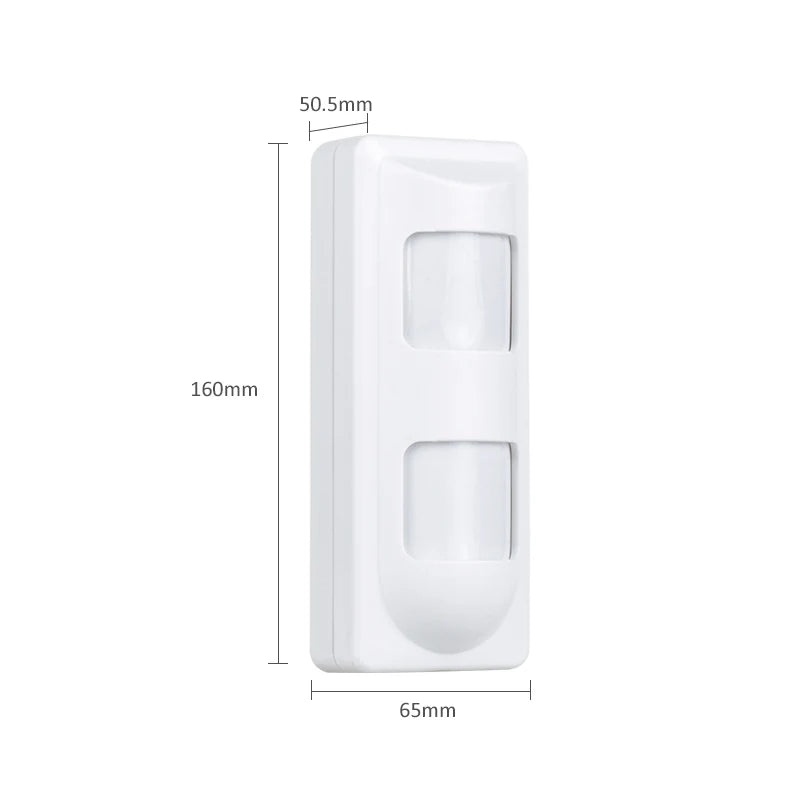

motion sensor size: 160 x 65 x 50.5 mm

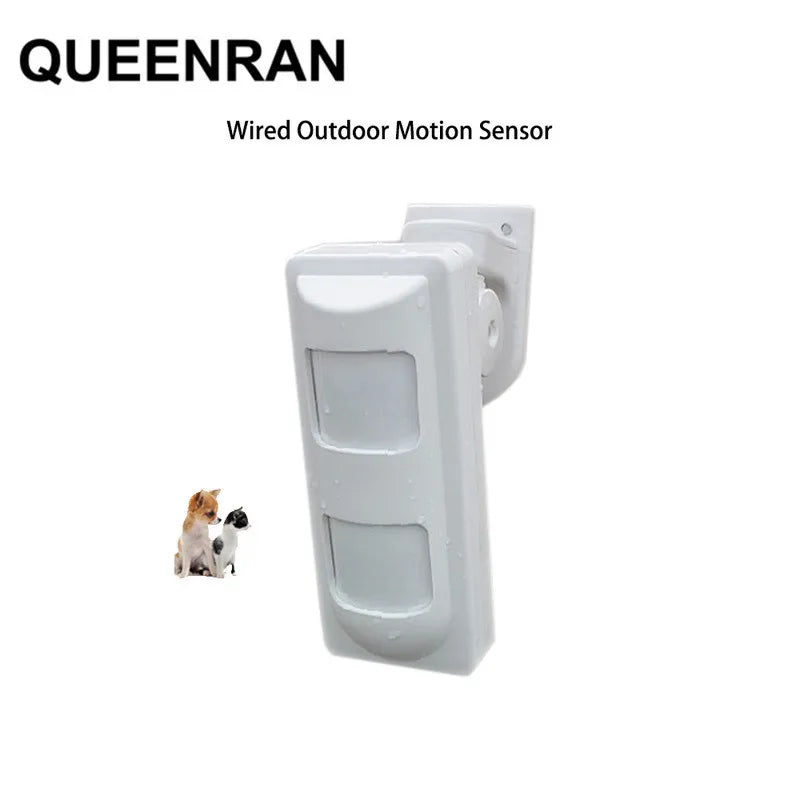

Outdoor Waterproof IP65 Pet Immune Wired Dual MW+PIR Motion Sensor Infrared Passive Detector for Smart Home Security Protection

Product Introduction:

This wired outdoor motion detector includes 2 PIR+MW. It is waterproof for outdoor protection, with and/or selection and "B" mode helps it to avoid PIR distance shorting cause by temperature. Its anti-mask function makes it more safety than normal detector.Pet immunity up to 25kg. Fit for commercial/residential area,factory,hotel,bank,apartment,villa,farm etc...

Specification:

1.DRO micro radar+2 independent dual PIR detection technology.
2.Adopts multi-grades intelligent signal processing software, full analysis and processing of all kinds of false alarms.
3.Adopts micro power-consumption 8 digits CMOS single chip control.

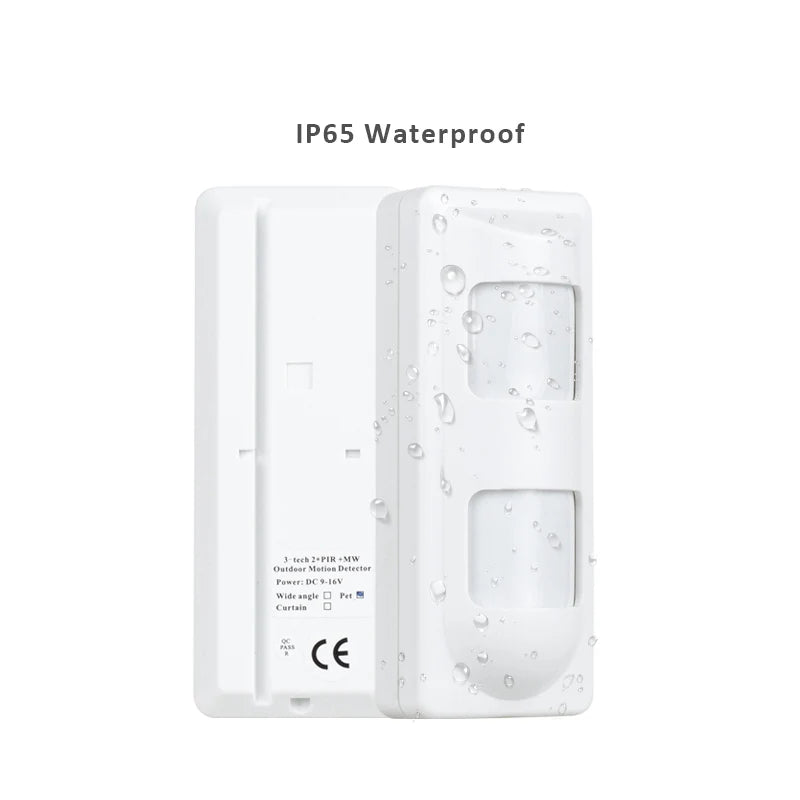

4.Professional grade IP-65 water-proof design, fit for fully outdoor installation
5.Double layer filtering system, anti strong light interference..
6.Digital analysis pet-immunity technology.
7.MW anti-masking technology, can detect the attempt of blocking MW or PIR channel.

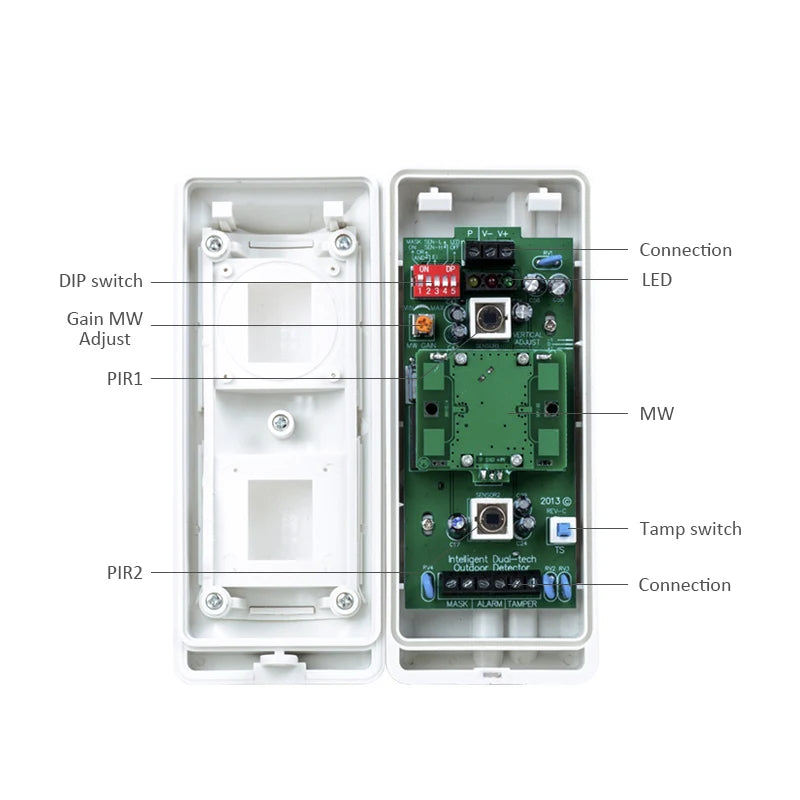

8.3 colors LED display, can recognize signals of PIR, MW, anti-masking and troubles.
9.Unique anti-masking and trouble output.
10.AND/OR modes for option, fit for various kinds of environments.
11.MW range adjustable.
12.With high/low sensitivity selection.
13.Unique full-range temperature compensation technology.
14.Anti strong EMI interference.
15.EI control mode for option.

Prameter:

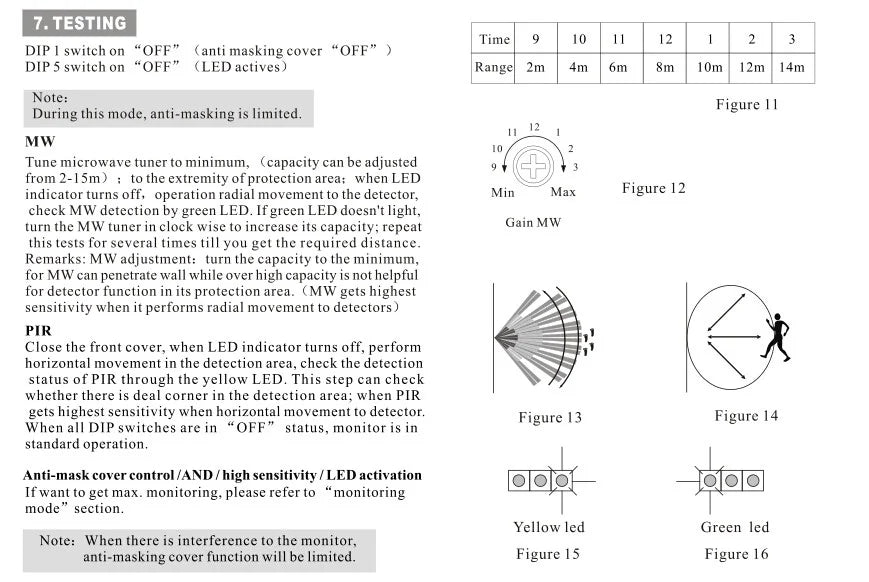

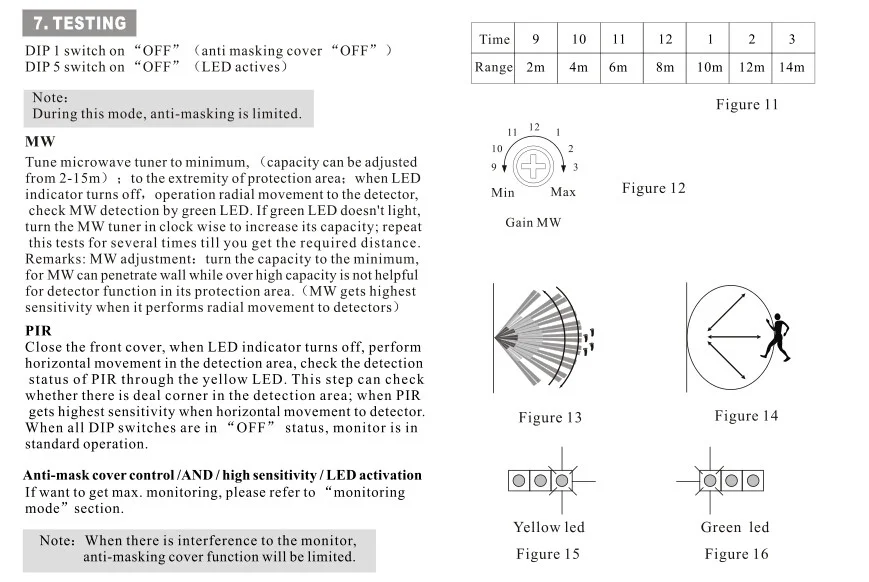

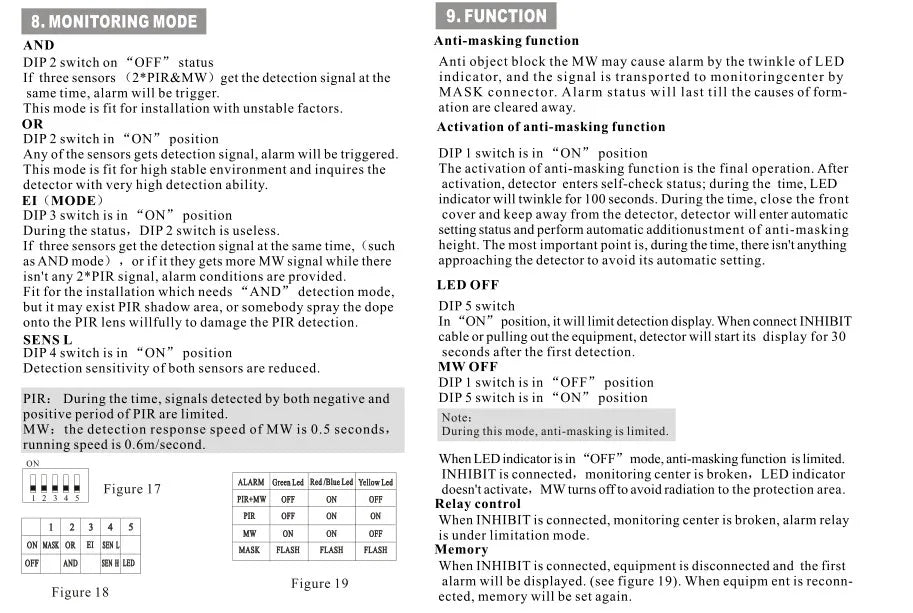

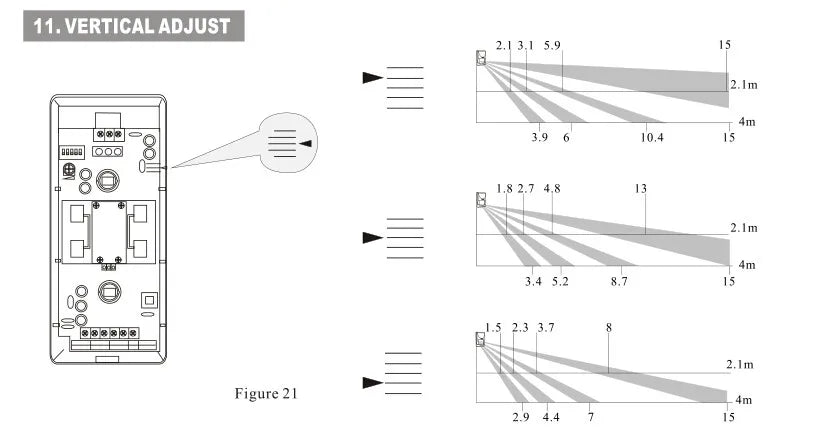

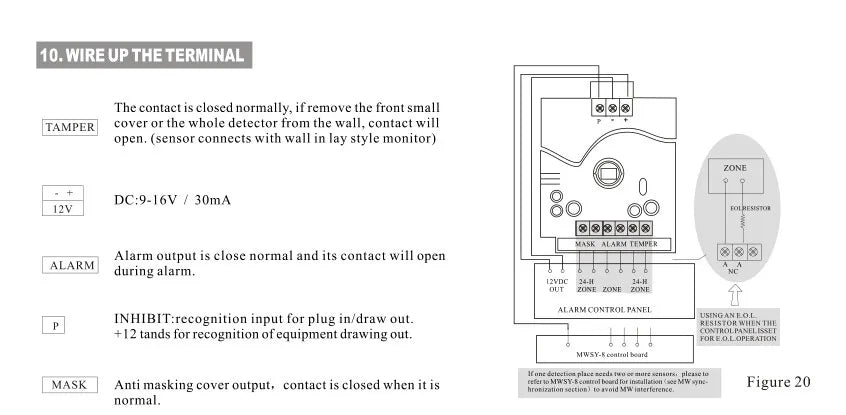

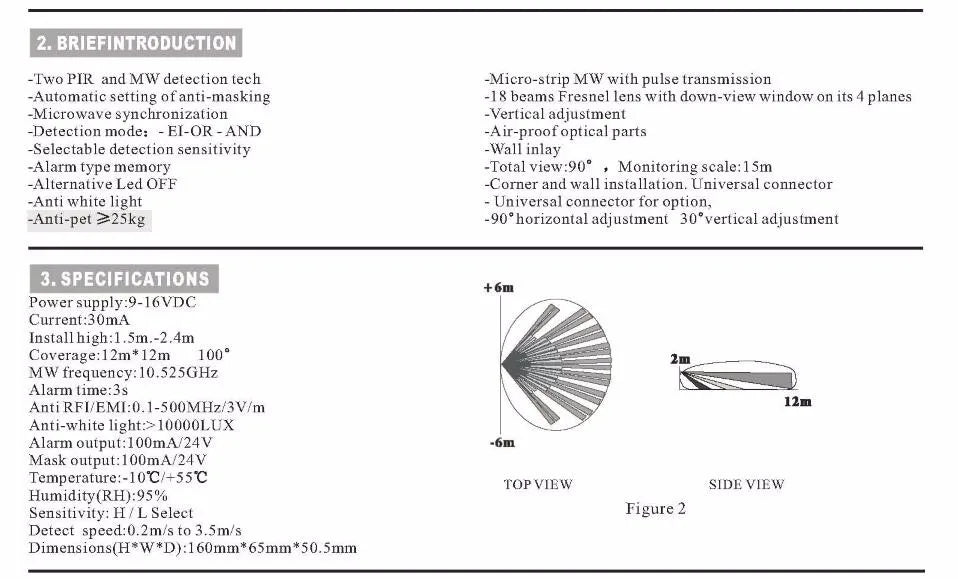

Manual Show:

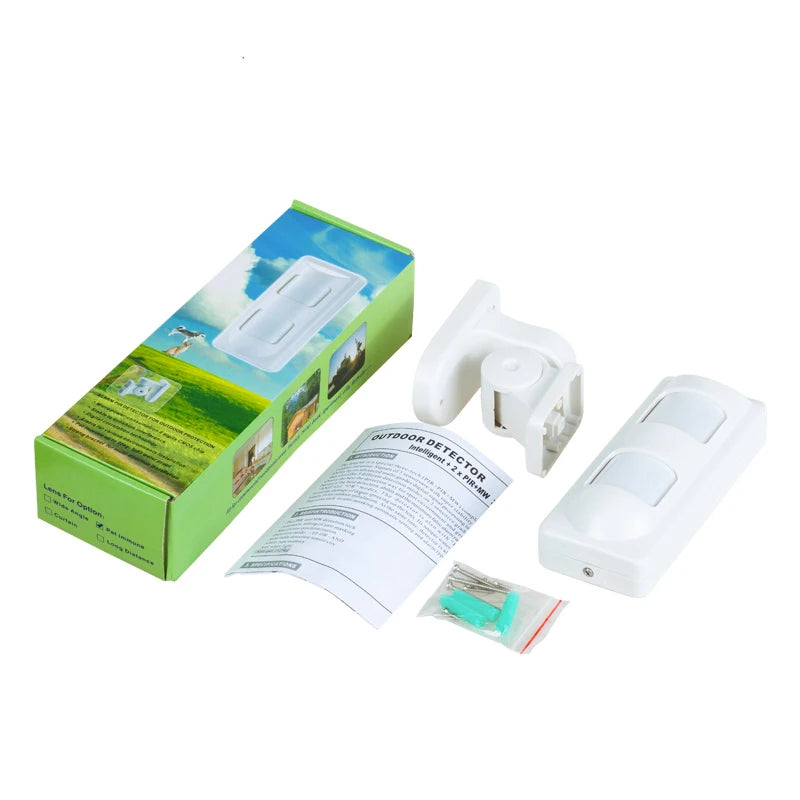

Packing List:

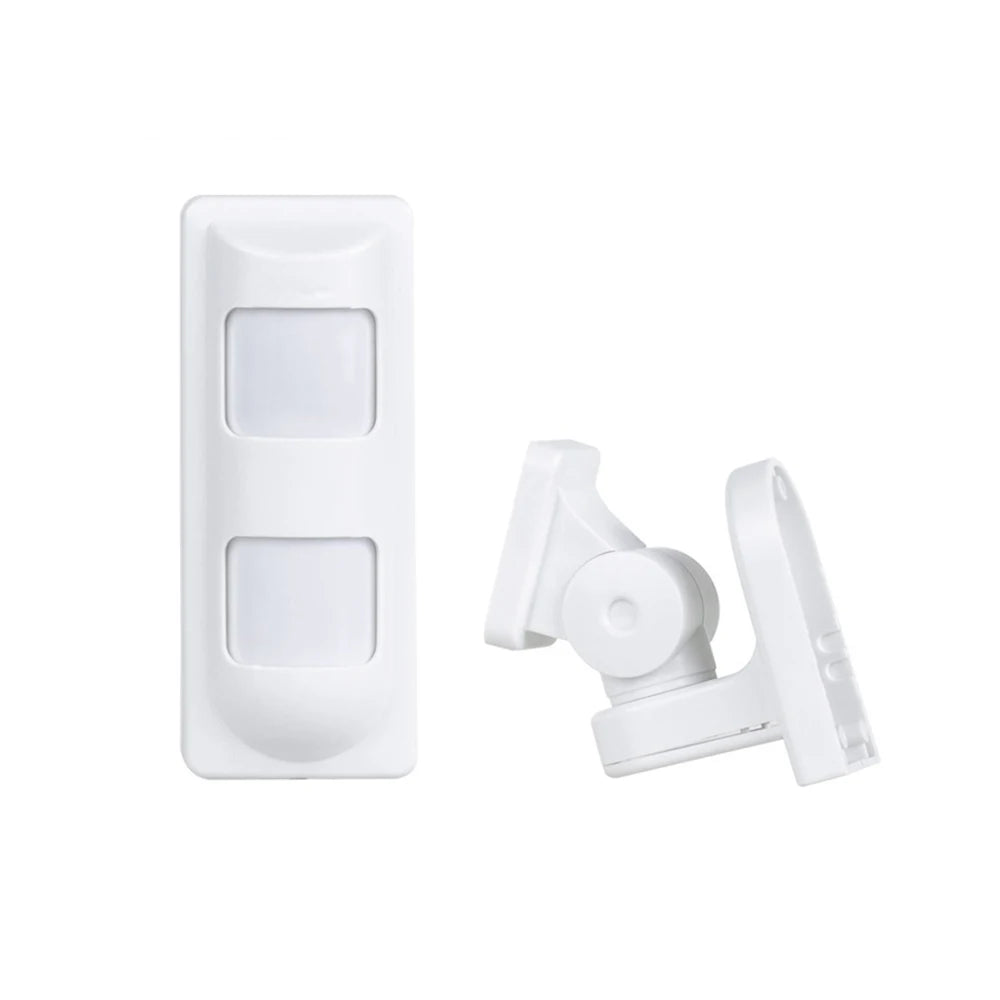

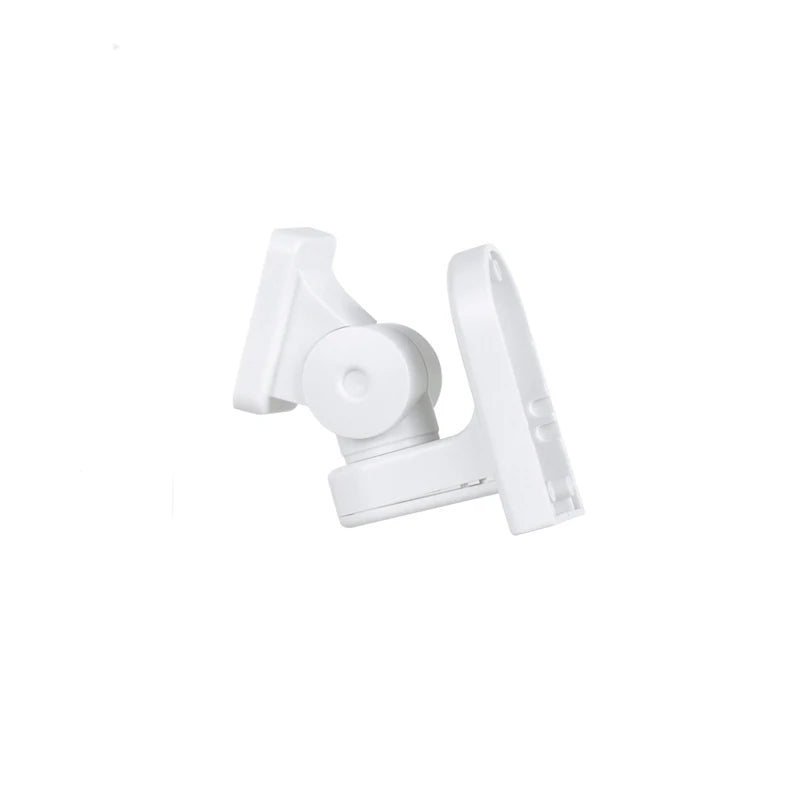

1pc Wired Outdoor Micrawave +PIR Motion Sensor (Manual,Screws and Bracket included).

Note: This sensor can not work alone, it can connect to all alarm system which supports wired zones.

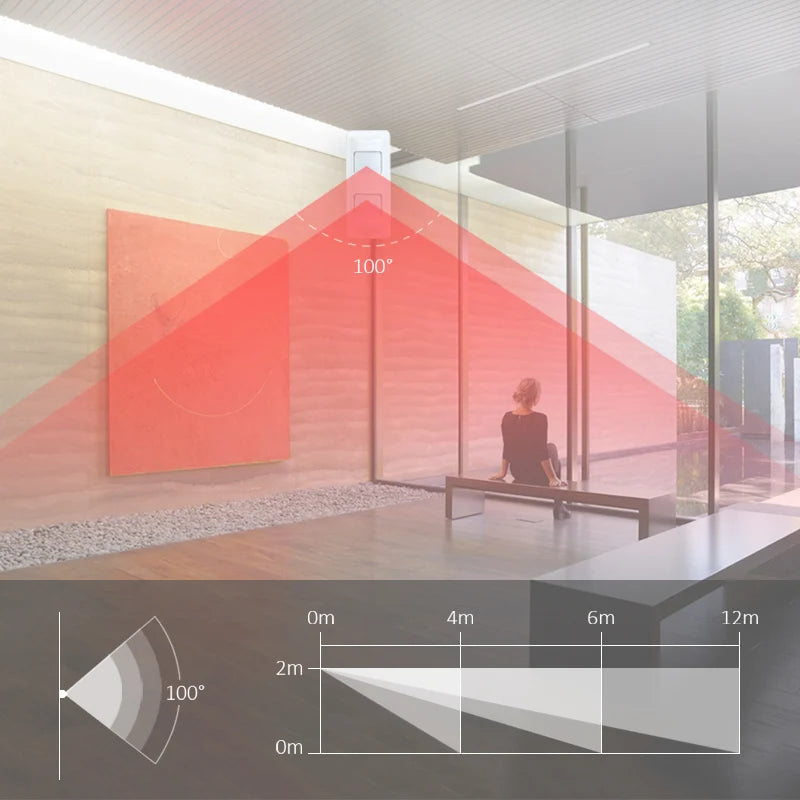

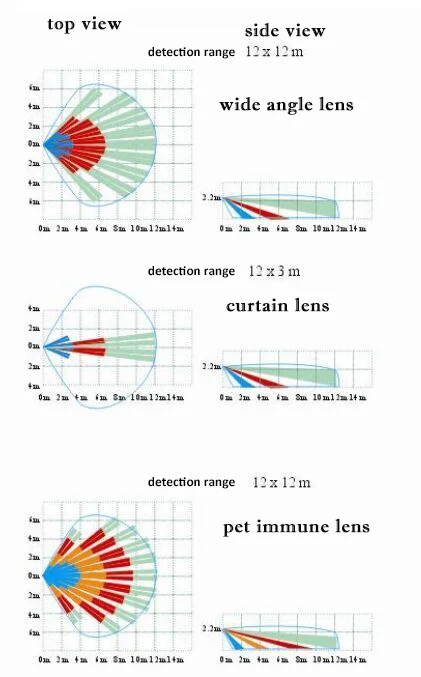

There are 3 lens for option: Pet Immune/Wide Angle/Curtain. Pet friendly Lens enable pet ( like dog, cat below 25kg) pass the protected zone without trigger alarm. Curtain Lens offer wider range of infrared line protection, like a curtain. Below picture can show detection range difference:
