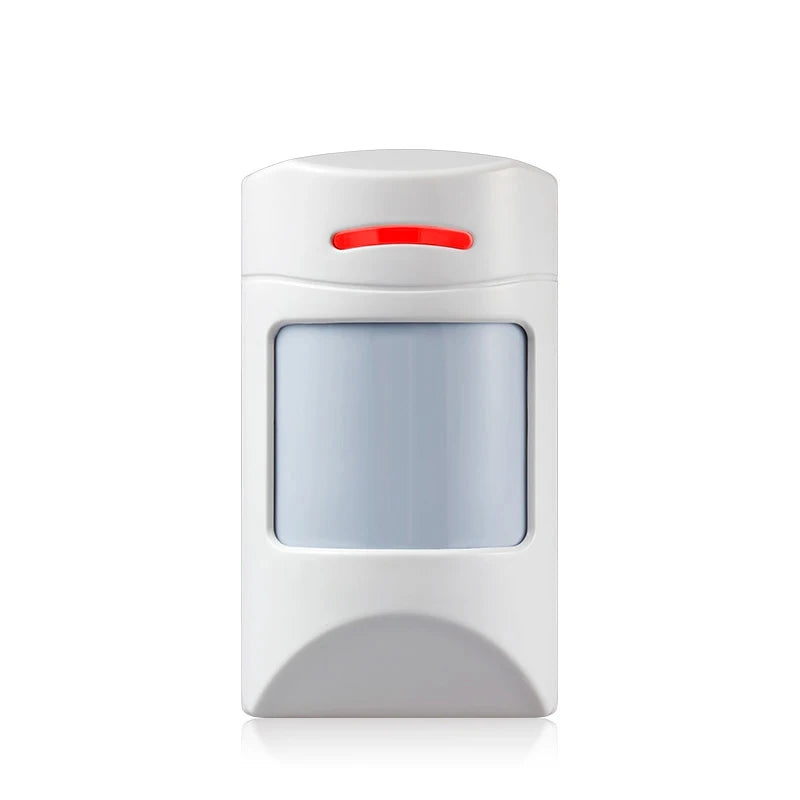

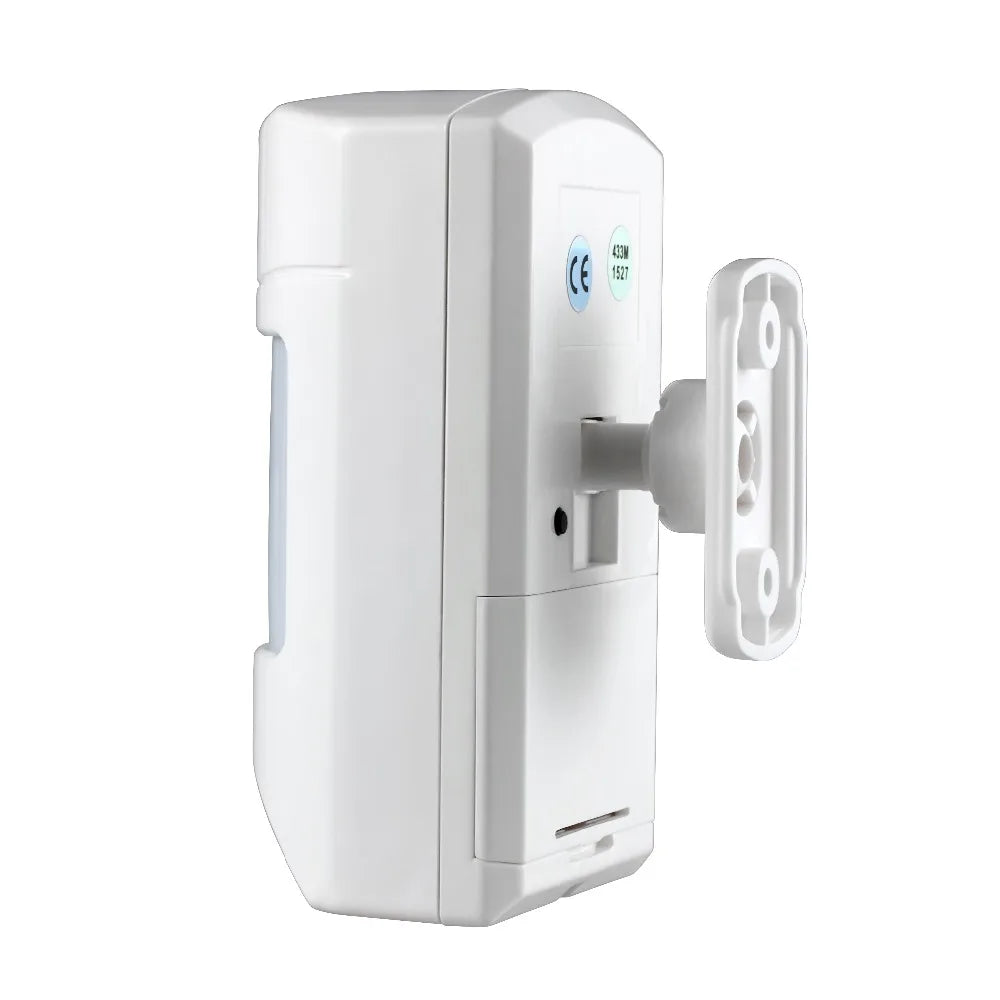

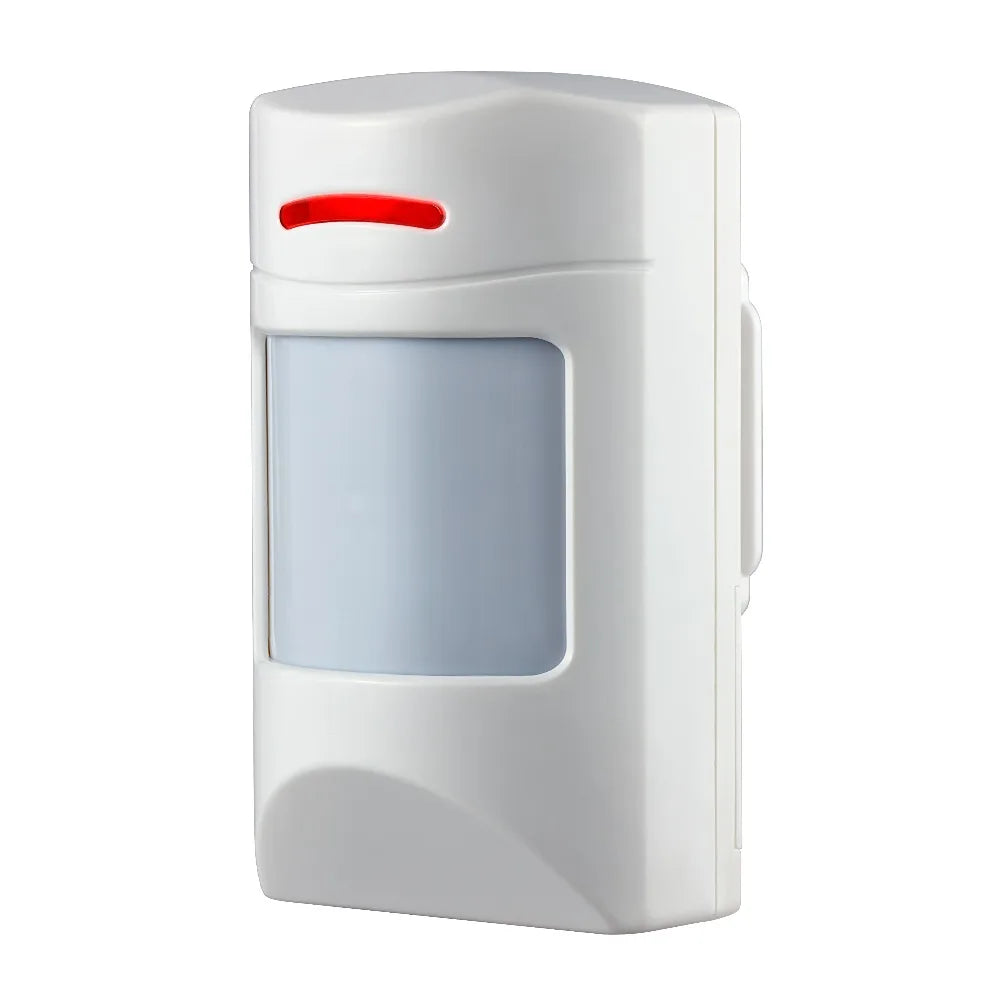

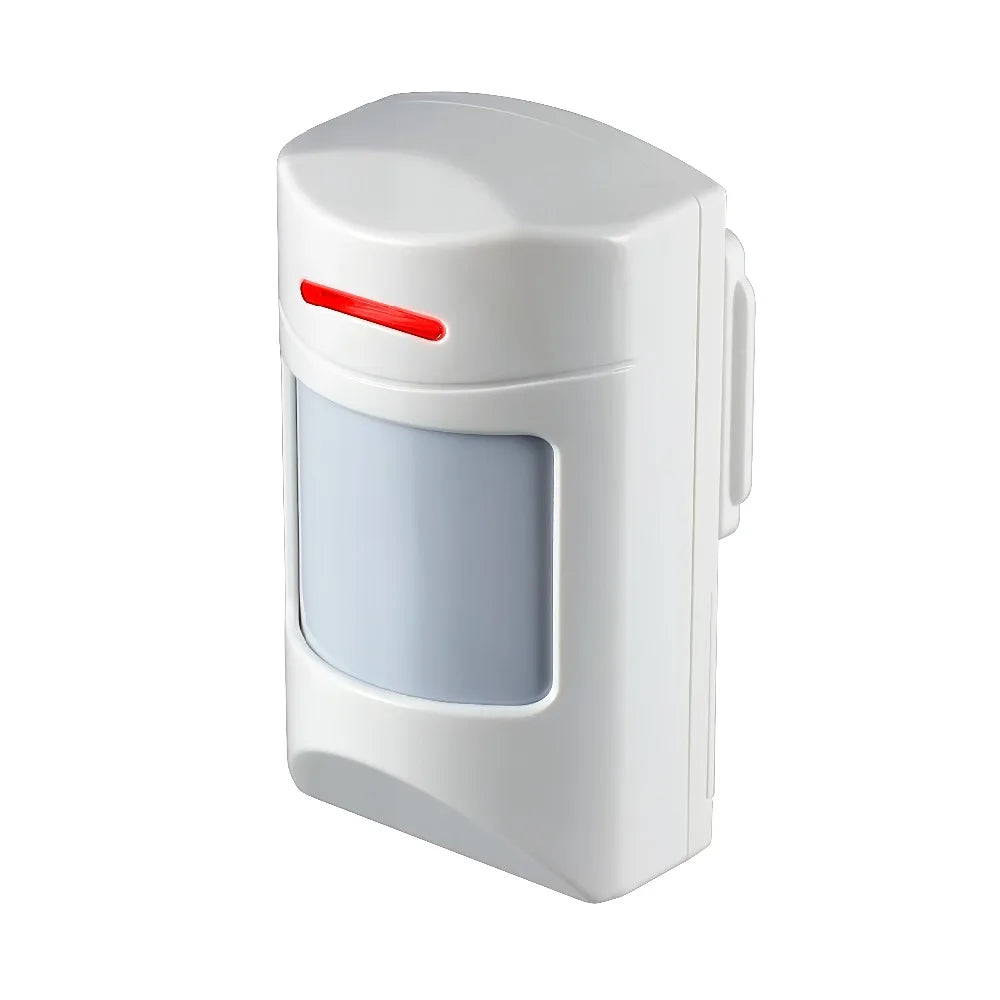

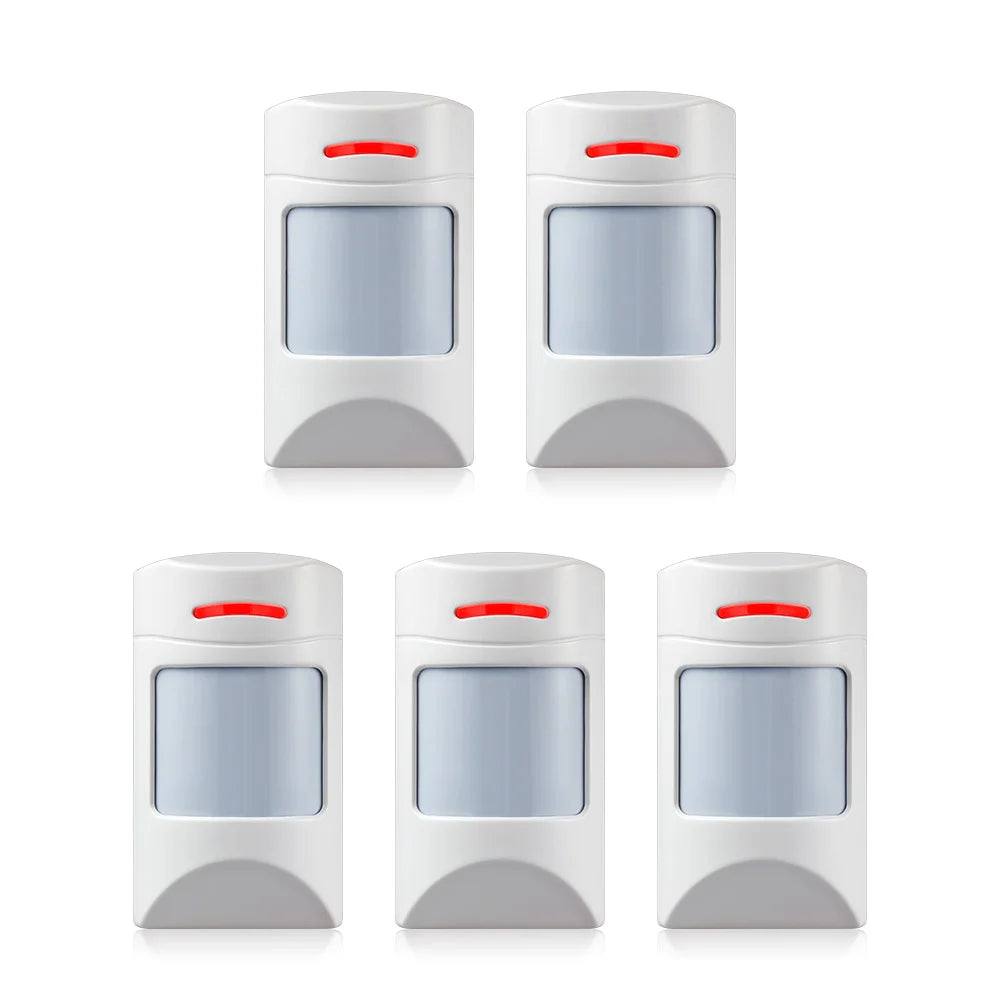

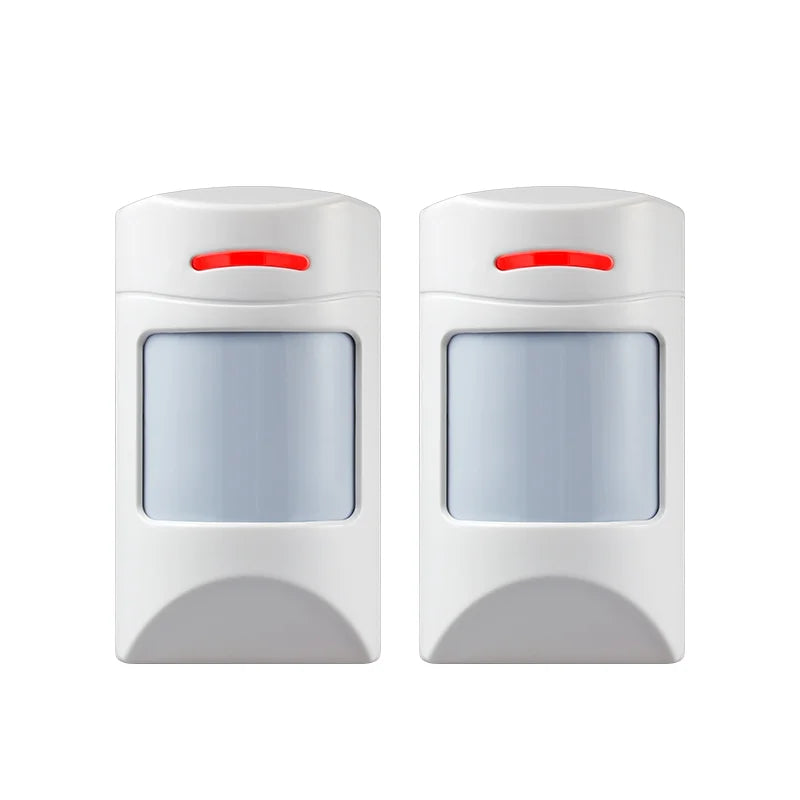

KERUI Wireless Anti-Pet /Immune PIR Motion Detector For GSM/PSTN Home Alarm

The product is wireless intelligent pet-immunity detector with high stability. It has adopted advanced technology in signal processing, provided super high detection ability, function of automatically identify valve control and pulse count. The detector will detect movement of human auotomatically when intruder pass through the detector area, and it will send out alarm signal to alarm host if there is movement. The product suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc.

Features:

• ASIC adopted

• Automatically identify valve control

• Adjustable pulse count

• Immunity of less than 12kgs pet

• Auto temperature compensation

• Send alarm signal by RF

• Adjustable detecting distance

• Low battery indication

• SMT design adopted.

Technical Parameter:

Working voltage:DC 3V(2*AA by battery)

Static current≤15uA  Alarm current≤10mA

Emission distance:30-80(open area)

Installation height:2.2m

Detection distance:6-15m

Detection range:90-110 degree

Encoding method:2262

Sensor:dual element infrared sensor

Operating temperature:-10 to+50

Emission frequency: 433MHz(we  default433MHz)

Installation method:wall mounting

Lower battery indicator:yellow LED

Alarm indicator:red LED

Product Testing

Turning on power and LED indicator will be flashed for 1s, the detector comes into state of self-check, it takes about 30s, after that it is in the state of normal work. Conner should walk parallel with the wall installed detector in the testing area. LED lighting means the detector is in the state of alarm.

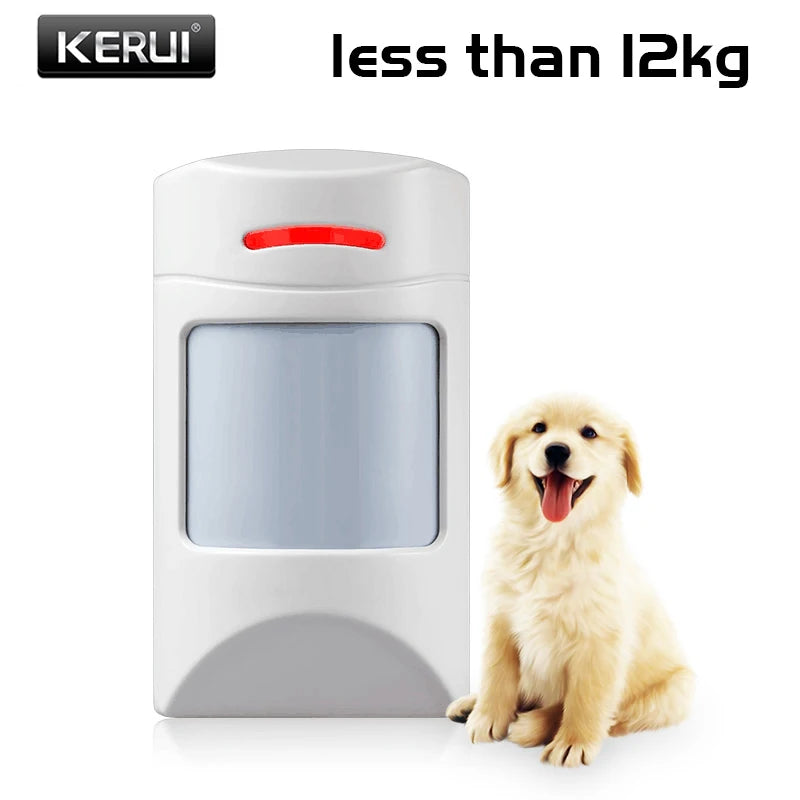

Pet-immunity function

install the detector at the height of 2.2m or so.

Make sure there is no inducement for pet to pass by, like stair and etc.

Notice: the function of pet-immunity will not work, if the distance of detector and pet is less than 1.8m.

NOTICE

1. Please install and use the detector according to this manual, don't touch the surface of sensor for avoiding affecting the sensitivity of the detector. Please shut off power and then clean the sensor by soft cloth with little alcohol if cleaning needed.

2. The product can reduce accident but may not perform as expected . The user is advised to take all necessary precautions for his/her safety and the protection of his/her property.

3. In order to ensure it can work normally, the power should be kept to supply and get on walking test periodically, once a week is better.

Packing Including(battery not include):

1x Wireless pet-friendly Motion detector

1x wall
