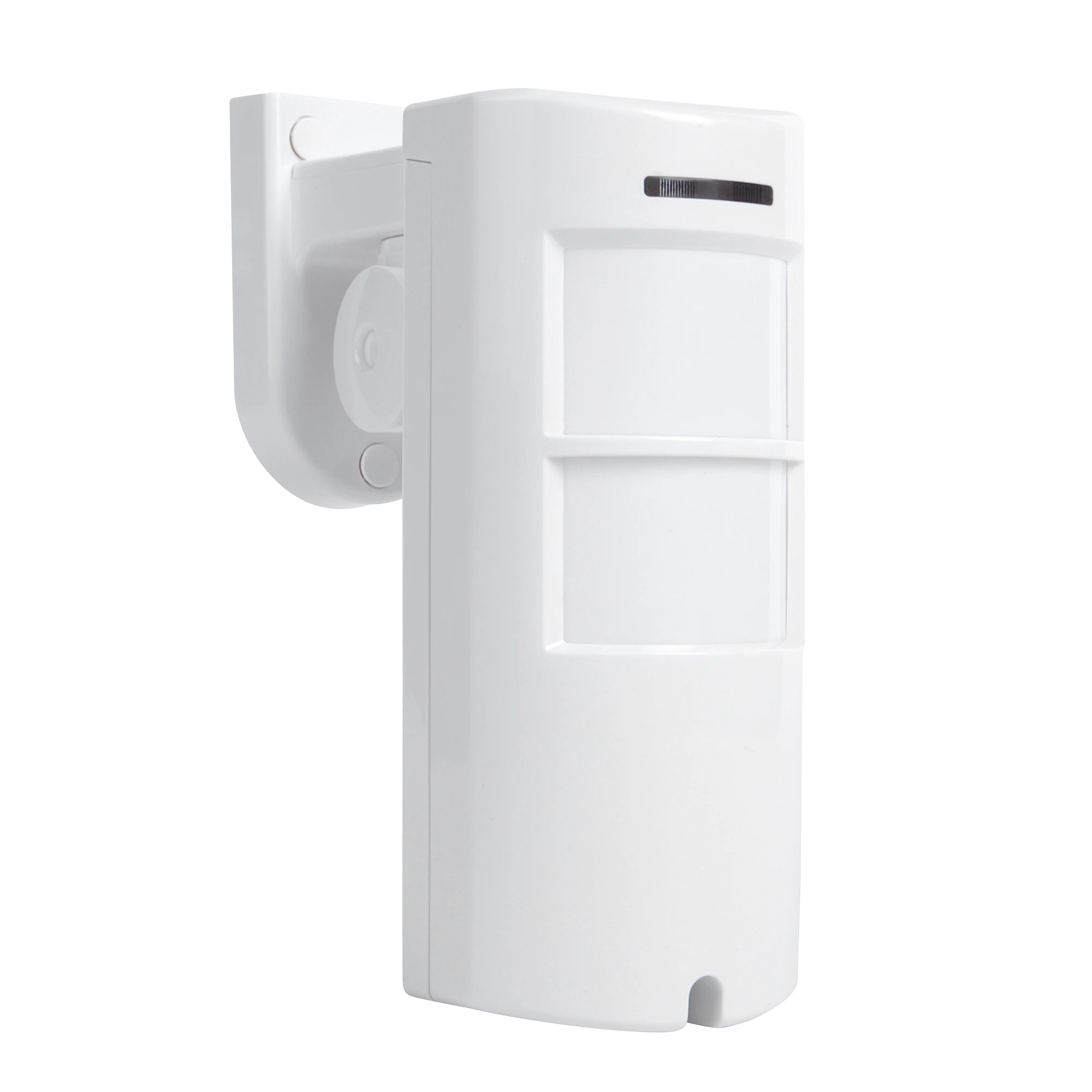

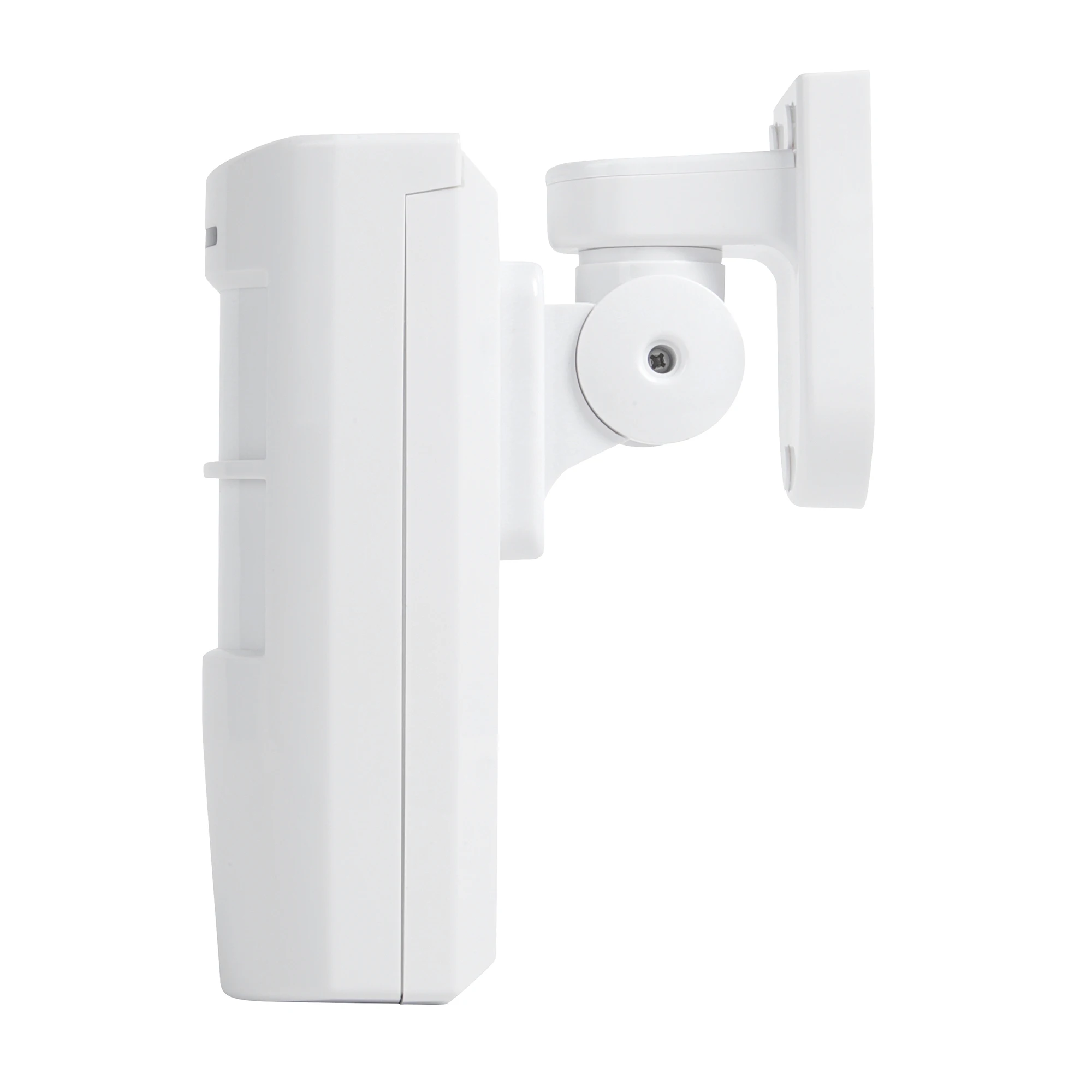

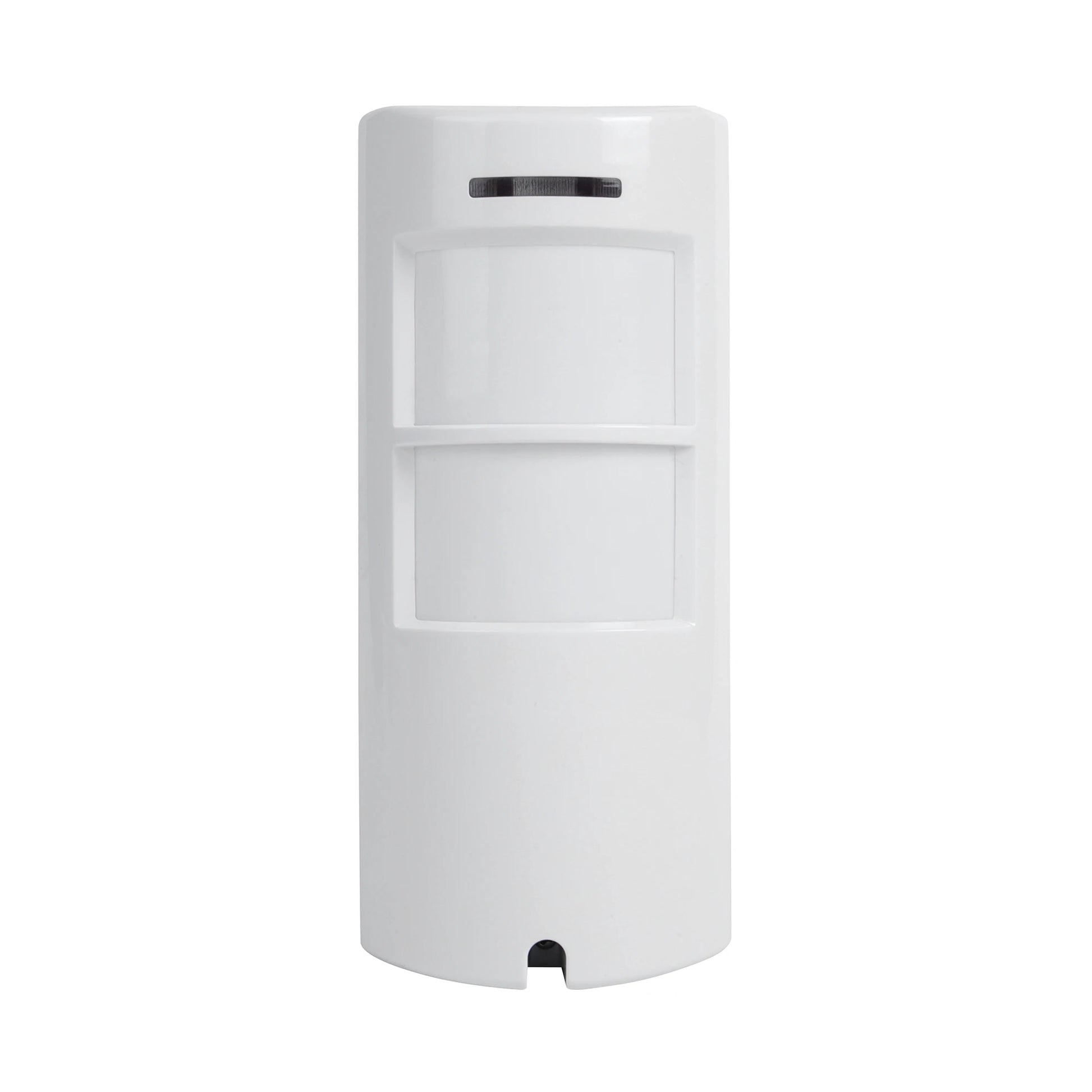

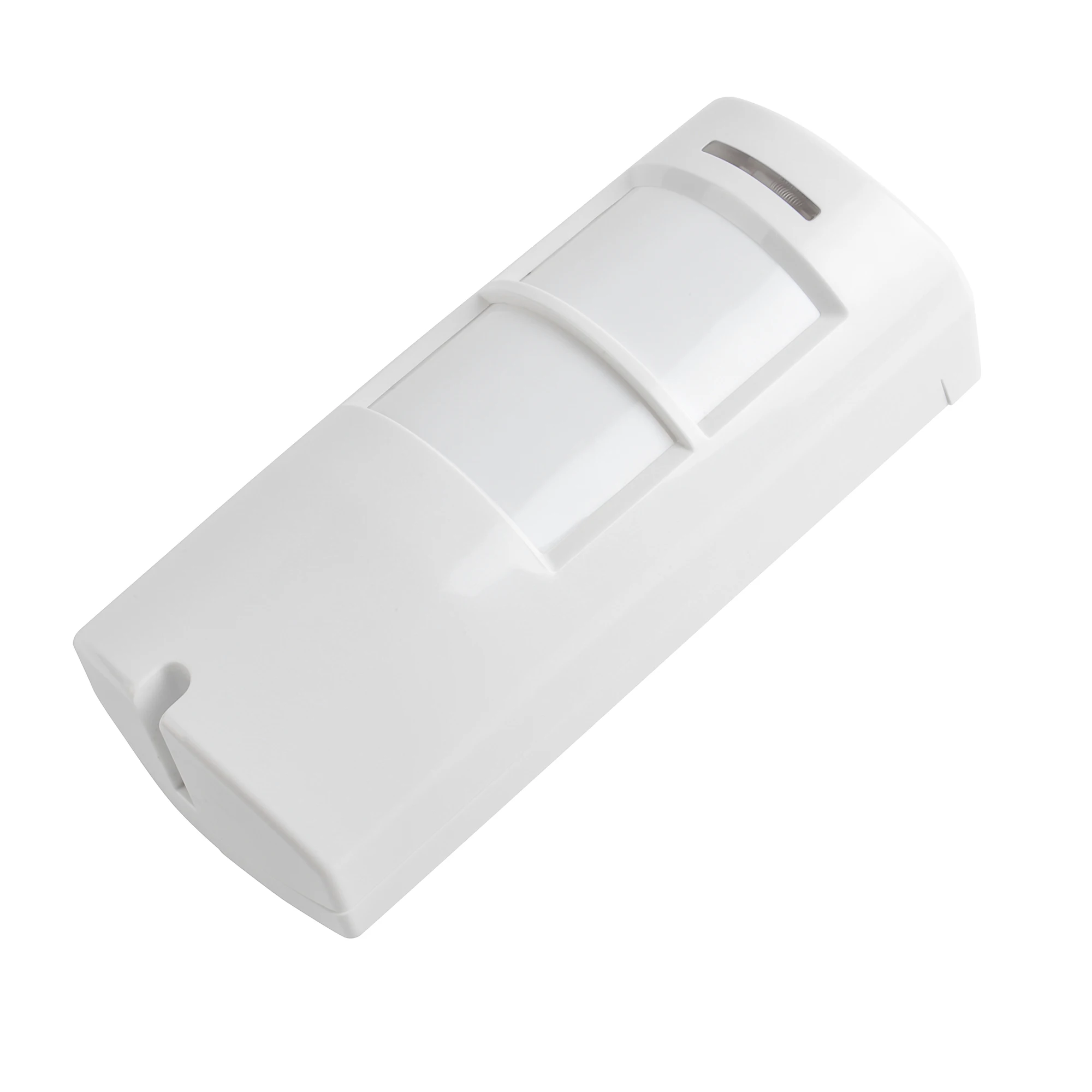

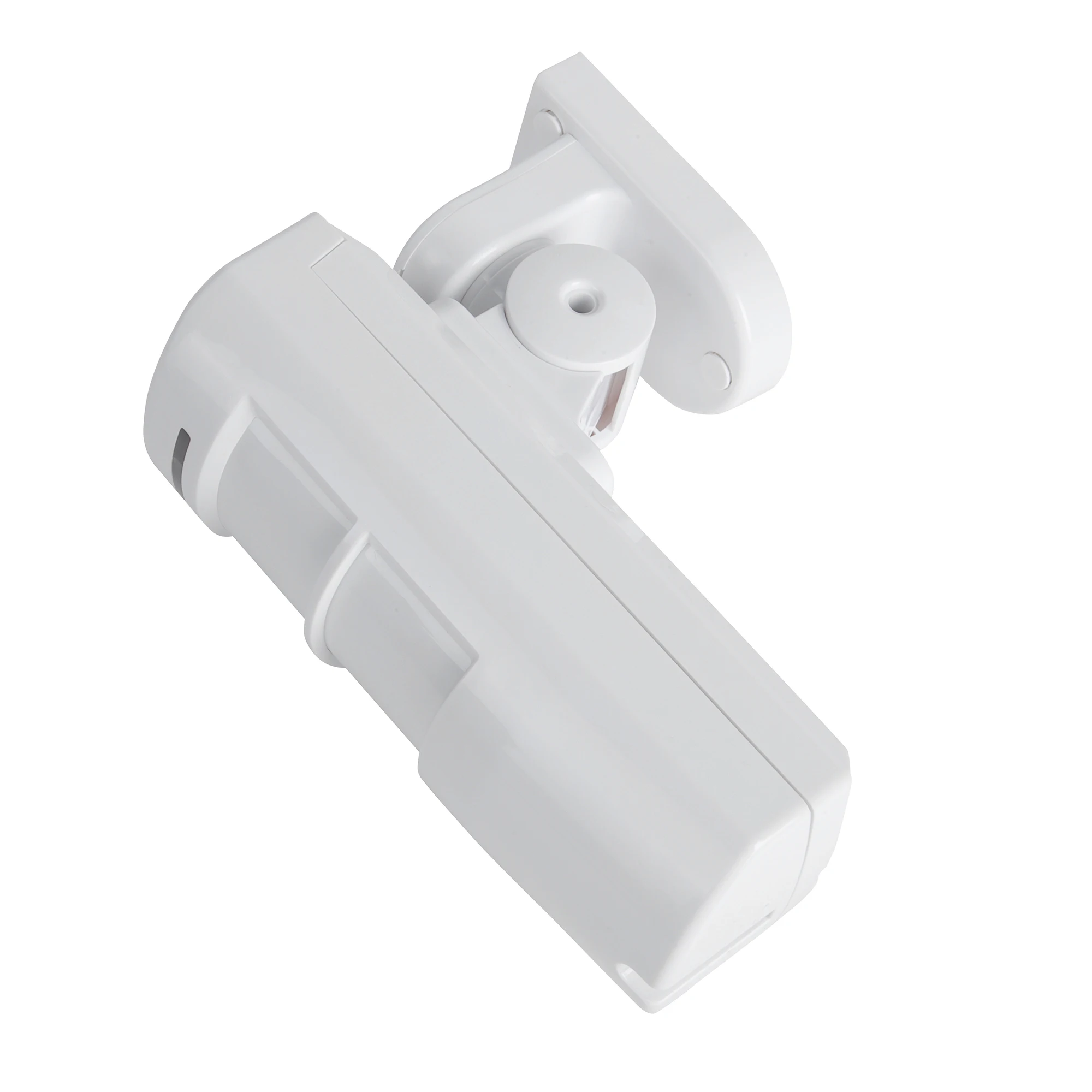

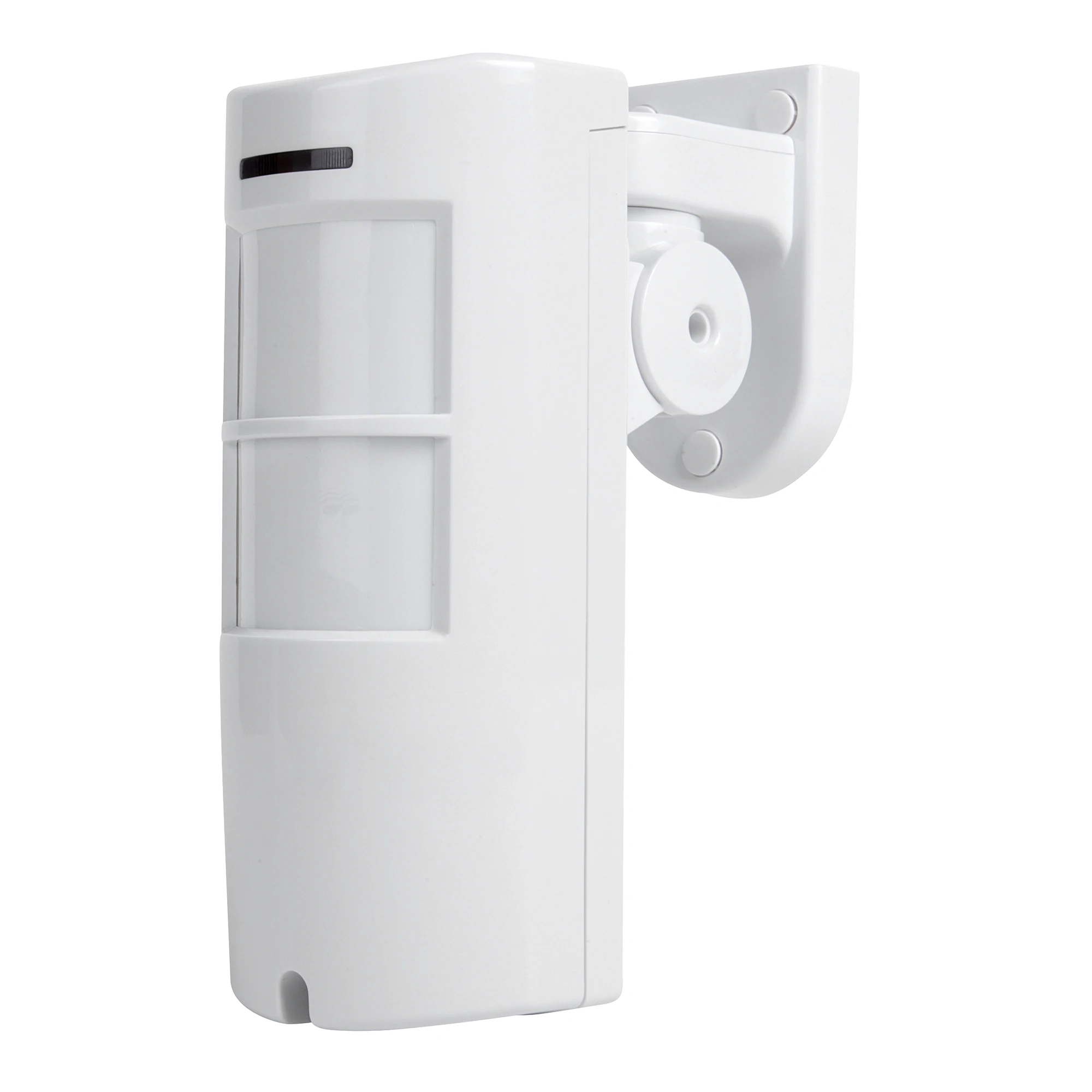

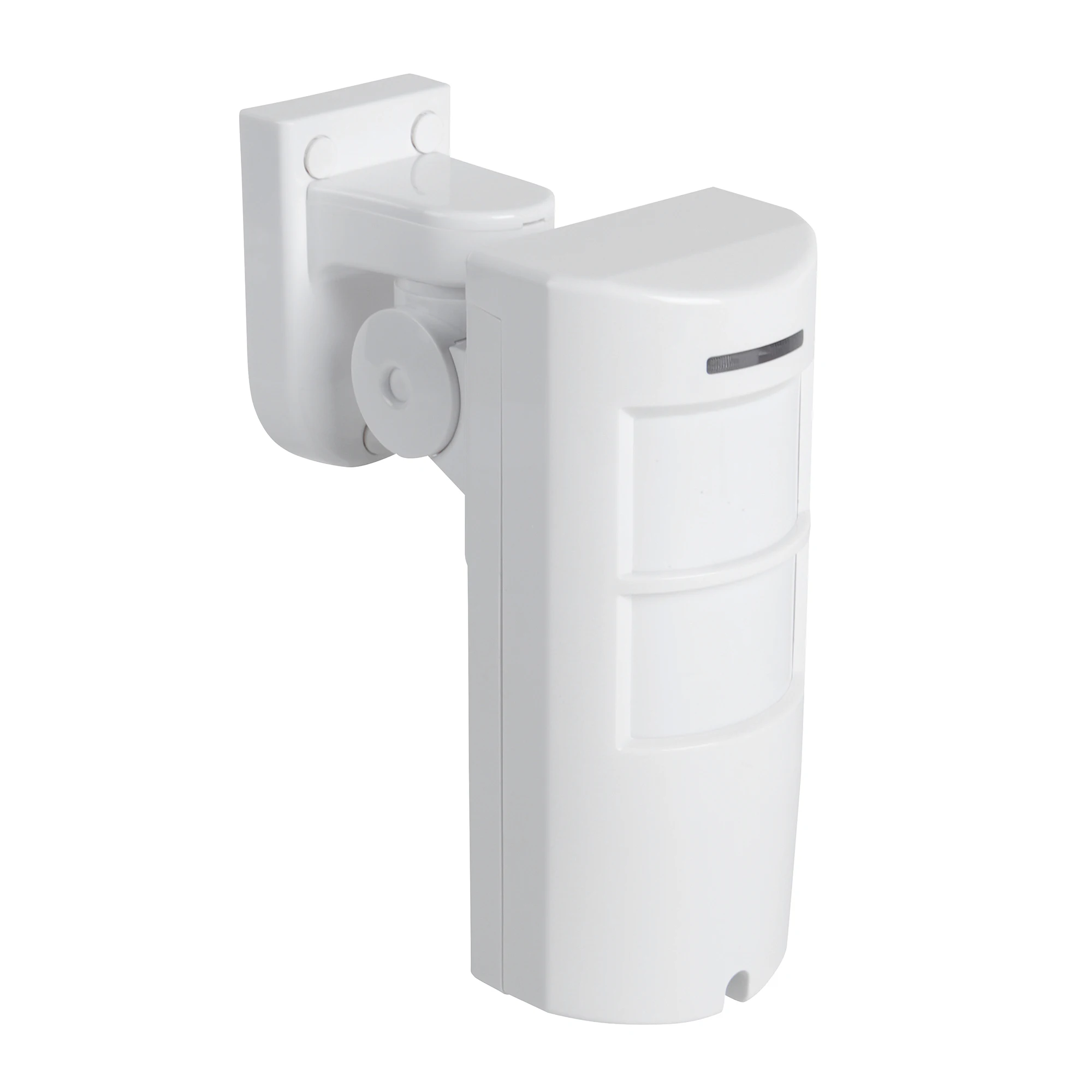

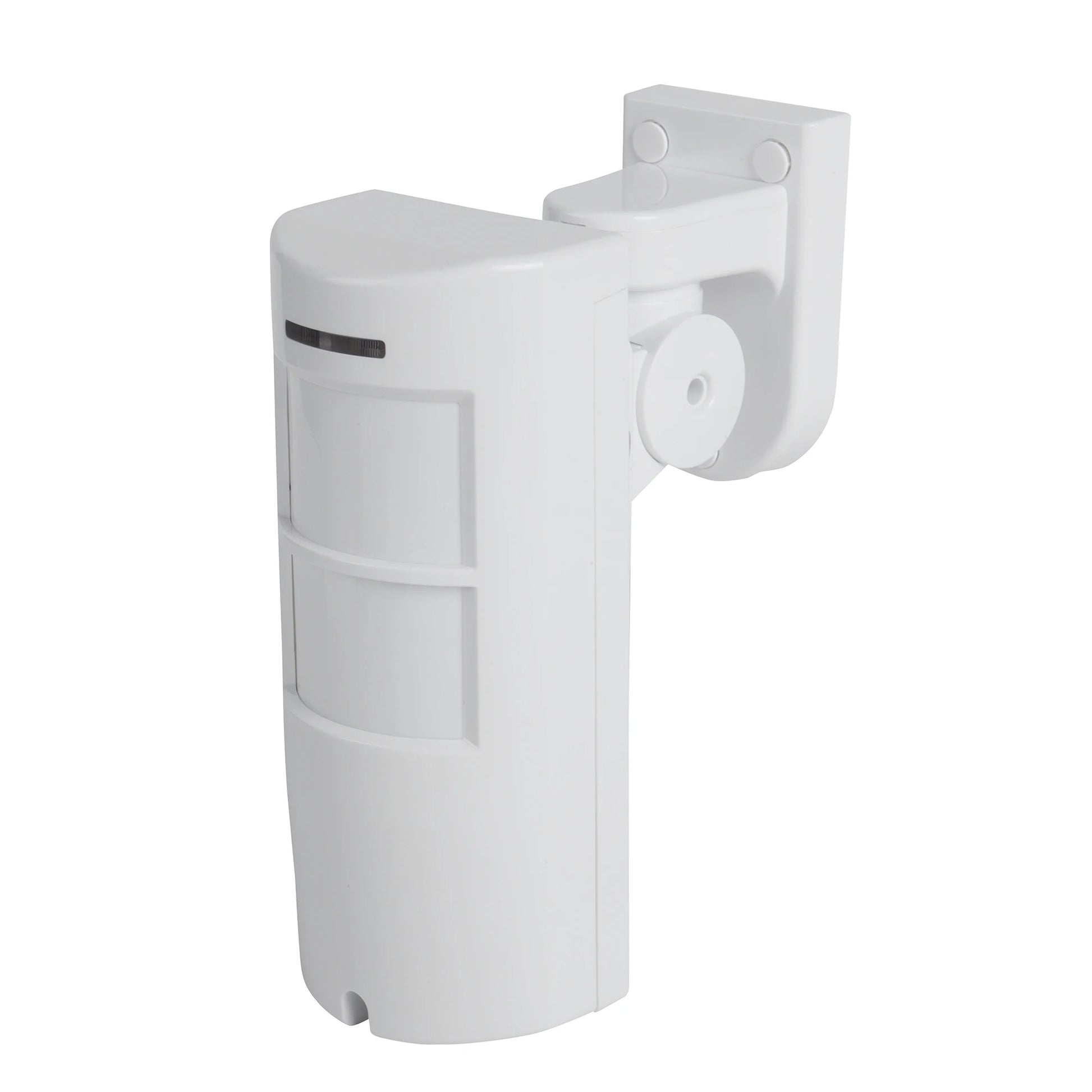

433MHz EV1527 Outdoor Wireless 2 PIR Motion Sensor Pet Immune 20KG with Tamper Switch for Intrusion Burglar Alarm System

£64.99 GBP

~~£0.99 GBP~~ £64.99 GBP

Sale Sold out

Taxes included.

Color 1pc

Quantity

SPECIFICATIONS

Anti white light: >10000 Lux

Brand Name: NoEnName_Null

Certification: CE

Hign-concerned Chemical: None

Model Number: OUT-400-C

Origin: Mainland China

Product name: Wireless PIR Motion Sensor

Smart home platform: other

Wireless distance: 200m (open space)

code: EV1527

detecting angle: 108 degrees

detecting distance: 12m*12m

frequency: 433mhz

pet immune: 20KG

waterproof: IP65

433MHz EV1527 Outdoor Wireless 2 PIR Motion Sensor Pet Immune 20KG with Tamper Switch for Intrusion Burglar Alarm System

Note:

This sensor can't work alone. it needs to work with the alarm host. The default version is 433mhz EV1527. Pls help to check if your alarm host support 433mhz EV1527. and we need to know your alarm panel's resistance number.please contact me, and show me your alarm panel. we need to know what's your alarm penel and need to help you to check if it's suitable or not.

Introduction:

This is a digital wireless motion dual PIR detector with remarkable functions, it can avoid outdoor interference from sunshine, UV & RF, head light on car etc and is highly effective for water/dust/insects/ wind proof. It is matched with follow advanced technology: direct calculation and analysis technology from intelligent high-speed microchip to intrusion infrared signal, double polarity test technology, automatic temperature compensation technology, direct adjustment technology to sensitivity on digital signal, filtering technology from multi-layer infrared channels to mixed light.Its particular calculation on pets chargeable data can avoid false alarm caused by 20KG small animals effectively. At the same time , it is also outstanding in anti hot air, waving curtains etc, can offer forced test on the base of 4-grade sensitivities. Its unique low-power-consumption solution can offer a guaranty of 24 months' factory battery life expectancy. In a word, this detector is advanced and stable enough to offer best security Protection indoor and outdoor with its IP65 water proof structure.

Main function:

-Super mini power-consumption solution

-2 channel four-element infrared detector

-2 grade sensitivities for option

-2 grade pulses for option

-Digital pet immunity up to 20KG

-Bi-directional temperature compensation

-High capacity battery

-EDS/electric shock proof/mobile interference proof

-Anti white light

-Low voltage alarm

-Fully sealed optical parts

-Multi-direction bracket fit for corner/wall/ceiling mount

Parameter:

Power : 3.0V CR123A Lithium battery

Current : 30uA (stand by) 18mA(alarm)

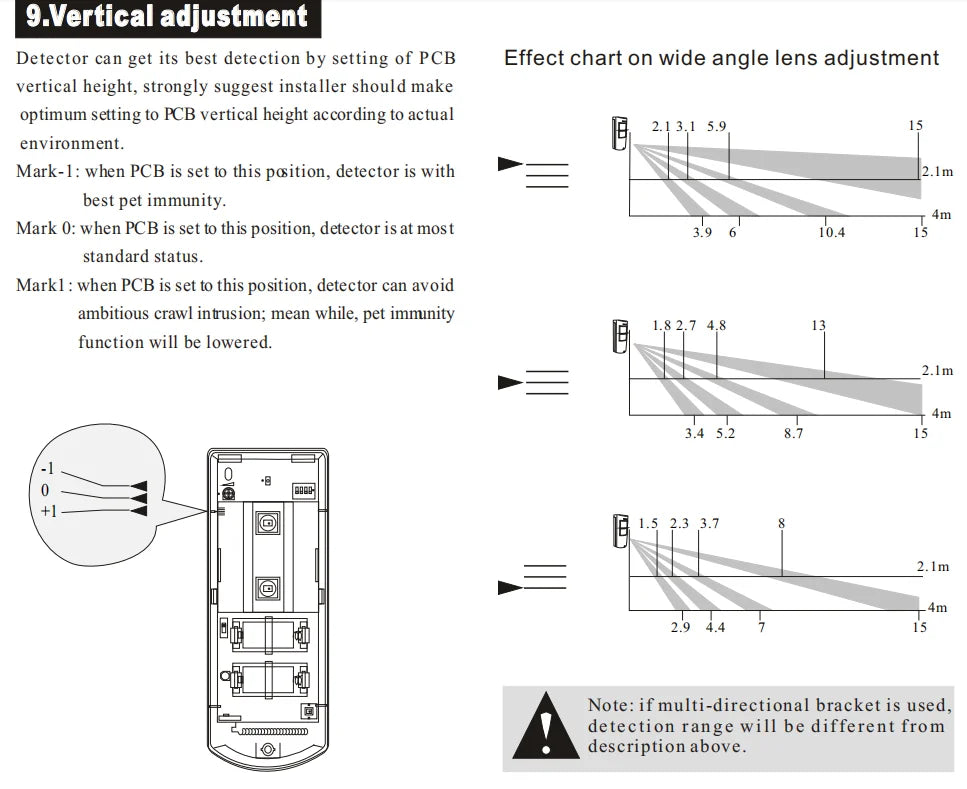

Mount height : 1.8m-2.4m

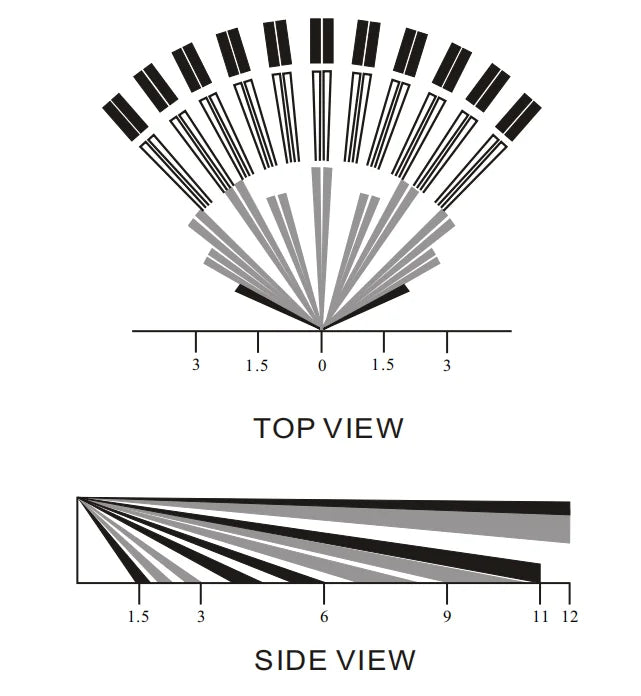

Detection range :12m *12m 108° (wide lens)

Temperature compensation: digital

Sensitivity : 4 grade for option

Anti EMI :0.1-1000MHz/30V/m

Anti white light :>10000 Lux

Anti RFI :50000V

Alarm output : Ev1527

Alarm time : 2s

Alarm interval : 4 min (use mode)

Wireless distance : 200m (open space)

Frequencies : 433MHz

Operation temperature :-25 ℃ to 55 ℃

Operation humidity :95% RH

Detection speed :0.2-3.5 m/s

Fire proof : ABS plastic

Pet immunity : 20KG

Size :180mm *76mm *60mm (main)

Installation:

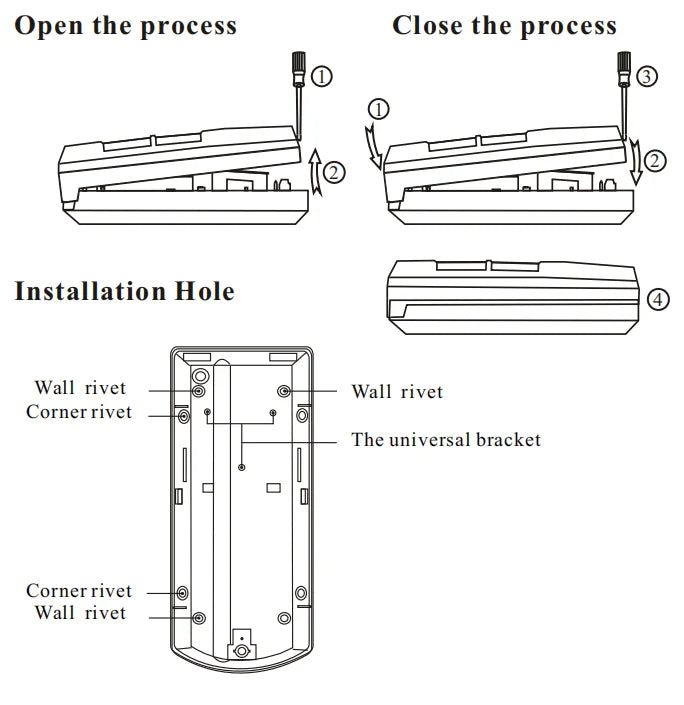

In order to optimize the signal coverage, the detector should be mounted at 2.1m height and vertically adjusted to zero point. Make sure there are no interference sources working near the detector and that there is a wide field of view in front of the detector. Unscrew, remove the front cover, and pull out the circuit board. Drill through the mounting blind hole, make a mark on the wall, drill a 40mm deep hole with a 6mm diameter drill bit, then punch the rubber plug into the hole, let the screw into the 5-6 mm, then thread the wire through the cable hole, and fix the bottom cover to the wall, finally tighten the screw.
